RFI CDQ8199B

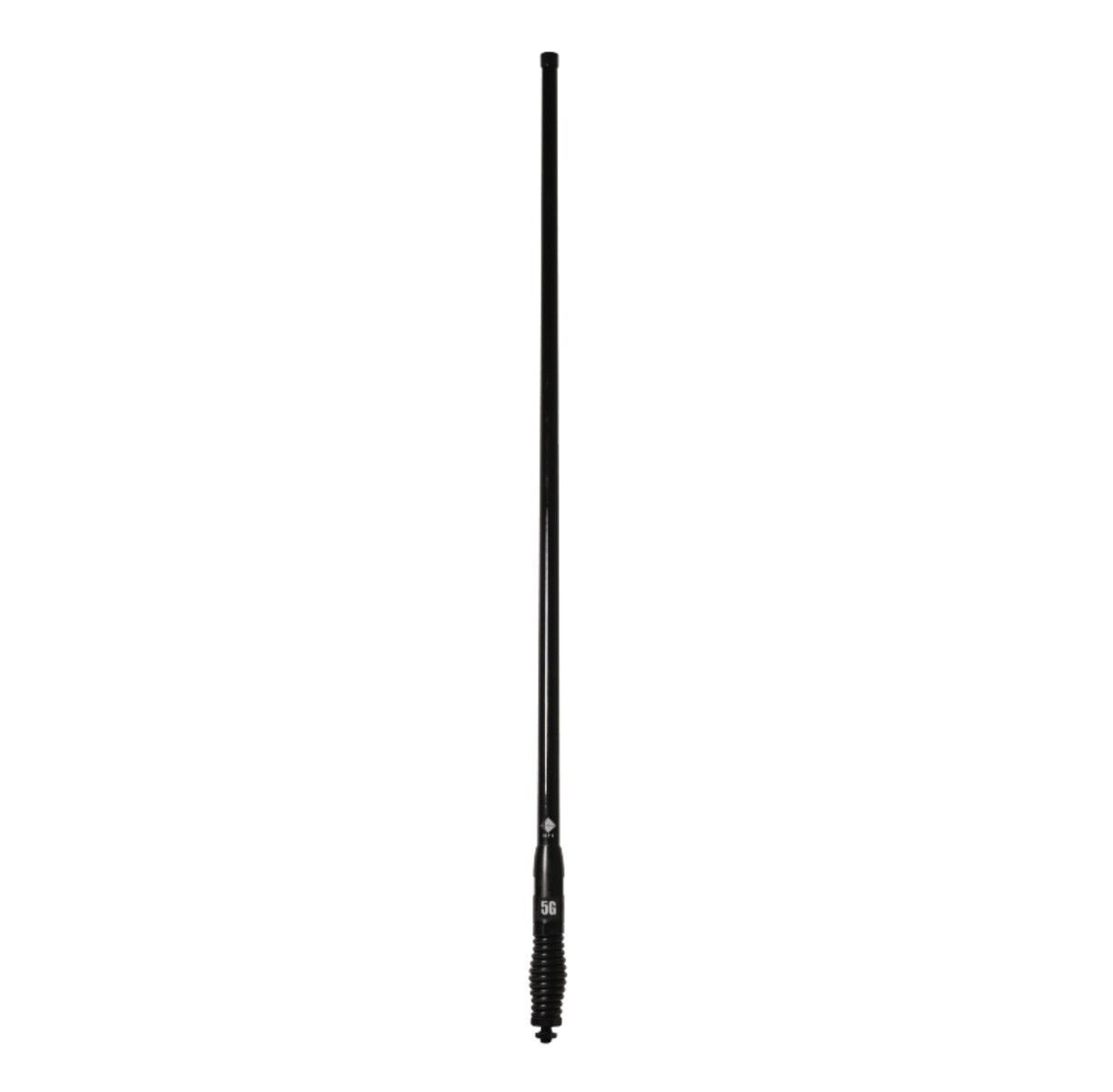

5G LTE 8.5dBi Collinear Antenna (698-3800 MHz); 5m SMA(M) - Black 4G 5G SUITS CELFI
FREE SHIPPING AUSTRALIA WIDE
DUE TO HEIGHT RESTRICTION WE MAY NOT BE ABLE DELIVER TO SOME REGIONAL AREAS.
PLEASE ADVISE US VIA EBAY WITH DELIVERY POSTCODE PRIOR TO PURCHASE IF WE CAN SEND IT TO YOUR POSTCODE.
The new CDQ8100 Series 5G LTE antennas not only cover the 4G LTE bands (698-960 MHz, 1710-2170 MHz, and 2300-2700 MHz) but now the new 5G LTE band (3400-3800 MHz).
It is ideal for use with cellular modems & active repeaters, especially when signal is poor.
The outstanding performance of the CDQ8100 series lies in the use of the patented Meander™ radiating elements. These Meander™ circuits are coupled together to deliver extraordinary consistency in gain, coverage pattern and bandwidth. The result is a unique antenna able to operate across all mobile phone networks globally, housed in the one unit.
Features
- Patented PCB based collinear design offering the ultimate in pattern and gain stability.
- Ideal for new 5G/LTE networks with true multi-band coverage.
- High gain across all bands making it suiting fringe and rural applications.
- Q-Fit® removable whip system for ease of removal in low height environments such as multi-story car parks, car washes or for security.
Brand RFI
Mounting 16mm mounting hole
Length [mm] 2080
Frequency MHz 698-960, 1710-2170 & 2300-2700MHz
Tuned Bandwidth Full
Radome Diameter Mm 22.5 - 15.6 Tapered
Termination FME female connector
VSWR <2.5:1
Nominal Gain [dBi] 8.5 / 4.5 / 5.5
Power [W] 10
Frequency Range [MHz] 1710 - 2170, 2300 - 2700, 698 - 960
Cable And Connector 5m of 9006 low loss cable terminated with SMA male connector
Packaging Retail Hang Sell
Antenna Type Ground Independent
Antenna Application Vehicle Antenna
Frequency Band Multi-Band 700 to 2700
