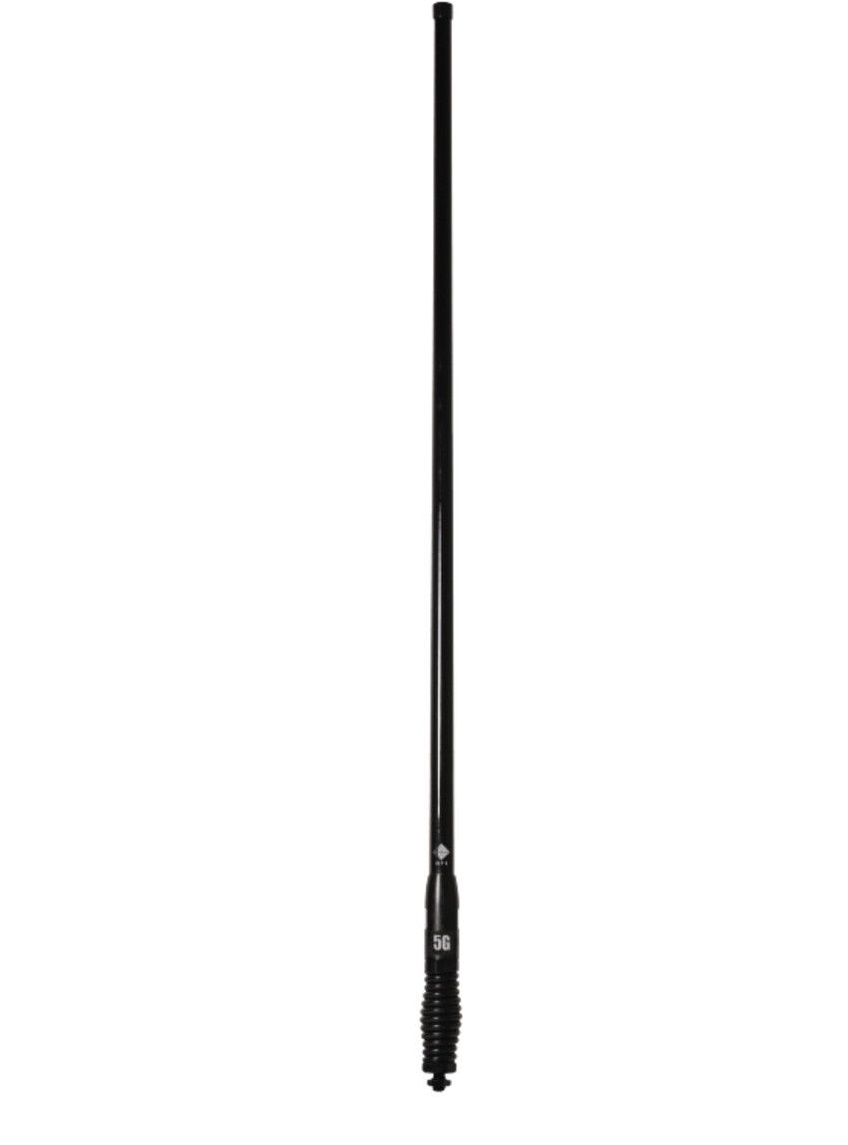

RFI CDQ8197-B 5G LTE 7.5dBi COLLINEAR ANTENNA (698-3800 MHz); 5m SMA(M) - BLACK
FREE SHIPPING AUSTRALIA WIDE
1 YEAR AUSTRALIAN WARRANTY
The new CD8100 Series 5G LTE antennas not only cover the 4G LTE bands (698-960 MHz, 1710-2170 MHz, and 2300-2700 MHz) but now the new 5G LTE band (3400-3800 MHz).
It is ideal for use with cellular modems & active repeaters, especially when signal is poor.
The outstanding performance of the CD8100 series lies in the use of the patented Meander™ radiating elements. These Meander™ circuits are coupled together to deliver extraordinary consistency in gain, coverage pattern and bandwidth. The result is a unique antenna able to operate across all mobile phone networks globally, housed in the one unit.
The CD8100 Series includes an integrated spring with threaded stud/nut for easy installation on vehicles.
It is our flagship product and is designed for the harsh Australian conditions. Includes an integrated spring with threaded stud/nut for easy installation on vehicles. The CDQ8100 Series whips can be removed via the integrated N male connector in the whip and N female connector on the spring assembly.
Key Features:
- Patented PCB based collinear design offering the ultimate in pattern and gain stability.
- Ideal for new 5G/LTE networks with true multi-band coverage.
- High gain across all bands making it suiting fringe and rural applications.
- Q-Fit® removable whip system for ease of removal in low height environments such as multi-story car parks, car washes or for security..
SPECIFICAIONS
|
Packaging |
Retail Hang Sell |
|
Cable And Connector |
5m of 9006 low loss cable terminated with SMA male connector |
|
Frequency Range |
1710 - 2170, 2300 - 2700, 698 - 960 |
|
Power w |
10 |
|
Nominal Gain Dbi |
7.5 / 4.5 / 5.5 |
|
VSWR |
<2.5:1 |
|
Termination |
FME female connector |
|
Radome Diameter Mm |
22.5 - 15.6 Tapered |
|
Tuned bandwidth |
Full |
|
Frequency MHz |
698-960, 1710-2170 & 2300-2700MHz |
|
Length [mm] |
1210 |
|
Mounting |
16mm mounting hole |
|
Brand |
RFI |
