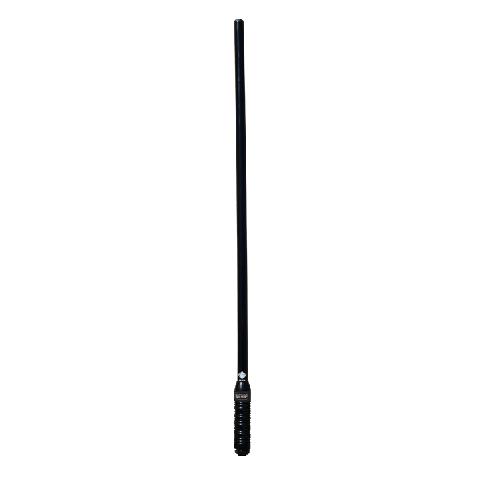

RFI CD8197-B MULTI-BAND HIGH GAIN 7.5DBI ANTENNA BLACK 114CM 4G 5G READY LTE ( REPLACES CD7197
FREE SHIPPING AUSTRALIA WIDE
1 YEAR AUSTRALIAN WARRANTY
The evolution continues with the release of the CD8100 Series 4G 5G READY LTE cellular mobile antenna. Like the CD2100 Series, the secret to its outstanding performance lies in the use of the patented Meander™ radiating elements. These Meander circuits are coupled together to deliver extraordinary consistency in gain, coverage pattern and bandwidth. The result is a unique antenna able to operate across all mobile phone networks globally, housed in the one unit.
DETAILS
With a 13mm stud mount on a heavy duty black chrome stainless steel spring, the CD8100 Series can be installed on a number of mounting brackets and are ideal for installations in commercial vehicles, four wheel drives and trucks.
Features:
-
Patented PCB based collinear design offering the ultimate in pattern and gain stability
-
Ideal for all new 4G networks with true multi-band coverage
-
High gain across 4Gx/4G+ 5G READY band suiting fringe and rural applications
SPECIFICATION
|
Frequency |
698-960 / 1710-2170 / 2300-2700 MHz |
|
Tunable Bandwidth |
Full |
|
Nominal Gain dBi |
7.5 / 4.5 / 5.5 |
|
Radiator Material: |
Flexible PCB |
|
Power W |
10 |
|
Cable and Connector |
5m 9006 Low Loss Cable Terminated with SMA male Connector |
|
Suggested Installation |
Bull Bar, Guard, Boot |
|
Radome Diameter mm |
15.6 |
|
Packaging |
Retail Hand Sell |
|
VSWR |
<2.5:1 |
|
Height mm |
1140 |
