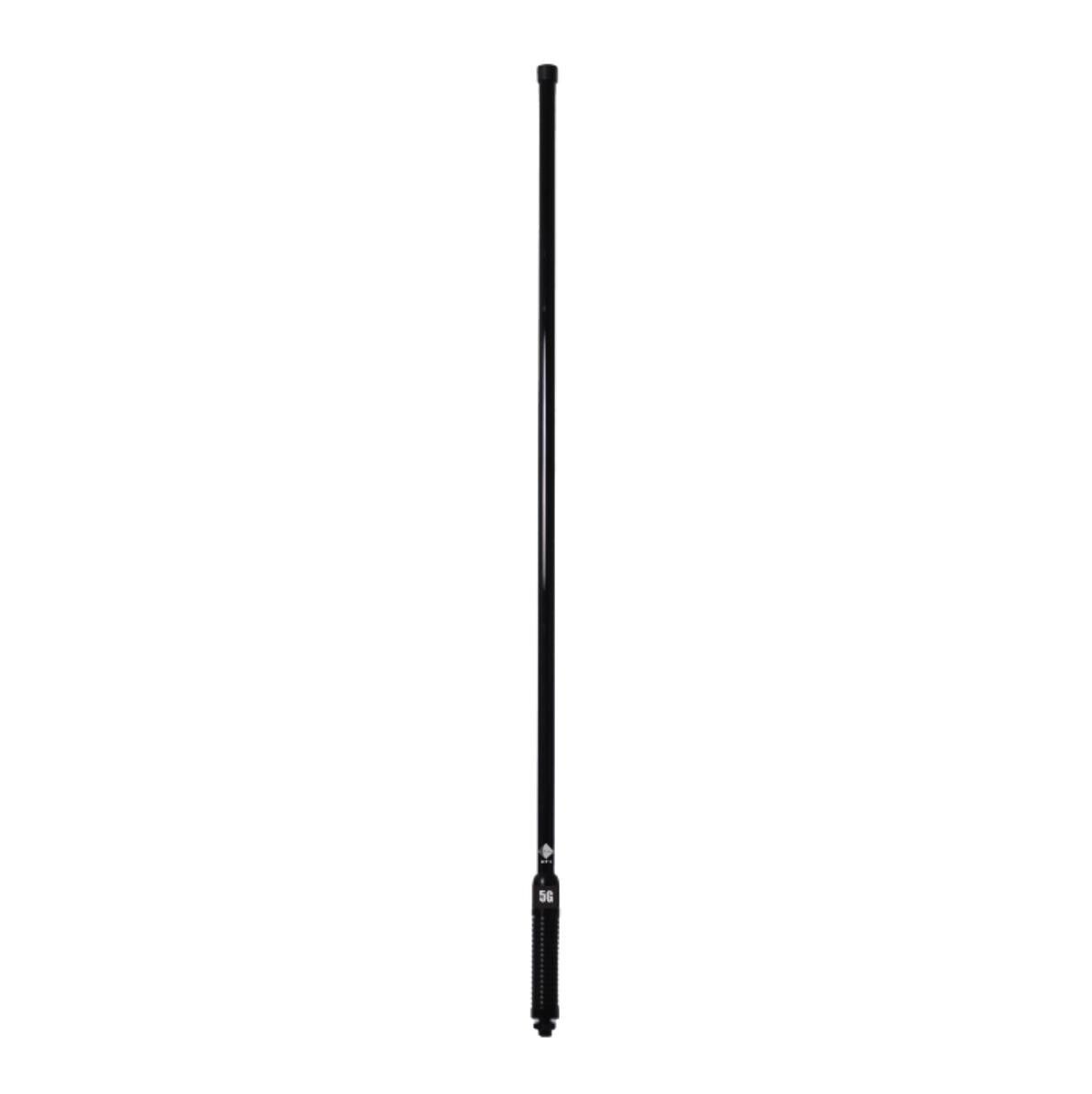

RFI CD8195 MULTIBAND HIGH GAIN 6.5DBI MOBILE PHONE ANTENNA BLACK

Item#: 3998

$163.09 AU$148.26

Free Shipping Australia Wide

RFI CD8195-B 3G, 4G, 5G READY LTE 6.5dBi COLLINEAR ANTENNA (698-3800 MHz); 5m SMA(M) - BLACK replaces cd7195

FREE SHIPPING AUSTRALIA WIDE

1 YEAR AUSTRALIAN WARRANTY

The new CD8100 Series 5G LTE antennas not only cover the 4G LTE bands (698-960 MHz, 1710-2170 MHz, and 2300-2700 MHz) but now the new 5G LTE band (3400-3800 MHz).

It is ideal for use with cellular modems & active repeaters, especially when signal is poor.

The outstanding performance of the CD8100 series lies in the use of the patented Meander™ radiating elements. These Meander™ circuits are coupled together to deliver extraordinary consistency in gain, coverage pattern and bandwidth. The result is a unique antenna able to operate across all mobile phone networks globally, housed in the one unit.

The CD8100 Series includes an integrated spring with threaded stud/nut for easy installation on vehicles.

Key Features:

- Patented PCB based collinear design offering the ultimate in pattern and gain stability.
- Ideal for new 5G/LTE networks with true multi-band coverage.
- High gain across all bands making it suiting fringe and rural applications.

SPECIFICATION

Colour	Black
Packaging	Retail Hang Sell Bag
Whip Material	Fibreglass
Cable And Connector	5m RG58 low loss cable (9006) terminated with SMA male connector
Frequency Range	1710-2170, 2300 - 2700, 3400 - 3800, 698 - 960
Nominal impedance	50
Power w	10
Nominal Gain Dbi	6.5 / 4.5 / 5.5 / 6.5
Polarisation	Vertical
VSWR	<2.5:1
Mounting area	13-16mm diameter hole
Horizontal Beamwidth	Omni-Directional
Frequency MHz	698-960 / 1710-2170 / 2300-2700 / 3400-3800 MHz
Length [mm]	920
Operating Temperature Range [°C]	-40 to +85
Brand	RFI
Weight [kg]	0.82

Add to Cart:

Model: CD8195B
