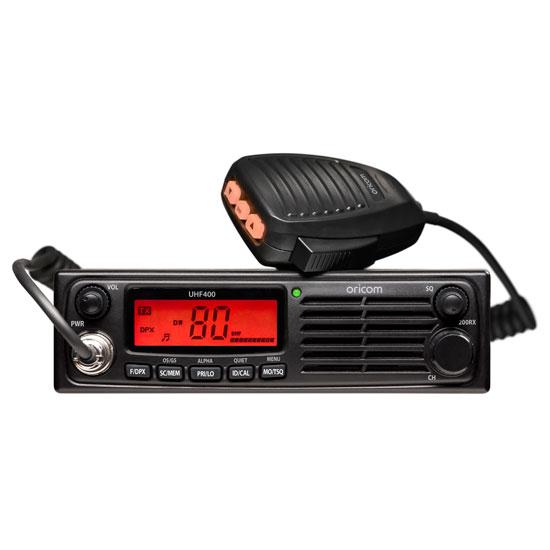

ORICOM UHF400R HEAVY DUTY 80 CHANNEL UHF CB RADIO
HEAVY DUTY 5WATT UHF CB RADIO
Built for Australian Transport
5 YEAR WARRANTY
The NEW UHF400 is a heavy duty 5watt UHF CB that is especically built for Australian Transport. Oricom's UHF400 features 12v/24v auto switching which makes it a quick and easy to install in any truck regardless of power supply.
The external heat sink ensures you maintain a full 5watt power output and has tuned sensativity to ensure optimal receiption.
80 CHANNELS*
Allows you to choose from 80 transmission frequencies (75 voice) to transmit or receive messages.
12v/24v Auto Switching
For easy installation into any vehicle regardless of power supply.
Automatic Level Control (ALC)
For consistent audio outpout levels.
5 Watt Maximum TX Output Power
Maximum transmit power for best possible range.
200 Receive Only Channels
Allows you to program in other channels in the UHF frequency between 400MHz to 512MHz and monitor transmissions.
Duplex (Range Extender) Capability
Local repeater stations rrea. This extends the effective range of the radio, giving you the greater reach.
38 interference eliminator codes (CTCSS)
Block out any unwanted conversations
Open/Group/Priority scanning
Gives you the option to scan all channels in memory and lock on any active channels or to select the channels you wish to monitor/listen to in a group, along with a priority channel (priority watch).
Large easy to read Colour LCD display (green/amber)
The keypypad and Liquid Crystal Display (LCD) is backlit for easy viewing at night or in low light situations.
Rugged chassis construction with integrated heat sink
The external heat-sink cools quickly, ensuring the radio maintains the highest possible output power.
3 year warranty - Peace of mind. Buy your Oricom product with confidence.
length is 17.5cm width 9cm height is 5.5cm
bracket 8.8cm width 18 cm height 5.5 cm
|
Operating Frequency |
476.425- 477.4125MHz |
|
Transmit TX power (erp) |
5 watts max |
|
Operating volts Range |
10 - 30 VDC |
|
Channels |
80* channels |
|
User Programmable RX channels |
200 CH |
|
Wide band scanner 400MHz to 512MHz |
Yes |
|
Default: 400 -512MHz full band |
Yes |
|
Band A: 400 ~420Mhz, |
Yes |
|
Band B: 420~450Mhz, |
Yes |
|
Band C: 450~470Mhz, |
Yes |
|
Band D 470~512Mhz |
Yes |
|
|
|
|
|
|
|
|
|
|
Interference Eliminator codes (CTCSS) |
38 codes |
|
Digital Coded Squelch (DCS) |
104 privacy codes |
|
LCD Backlit display color |
Amber/green/ |
|
5 tone selective (SELCALL) calling with 5 ID support |
Yes |
|
Pocket beep function for 5 tone Selcall |
Yes |
|
User programmable SELCALL |
Yes |
|
SELCALL group scan |
Yes |
|
SELCALL Quiet mode operation |
Yes |
|
Smart ring and automatic transponder alarm system |
Yes |
|
Alpha name tag display function |
Yes |
|
OPEN/Group scan and priority channel watch |
Yes |
|
User programable 4 step scan resume timer control (5, 10, 15 sec after stop and 5 sec after RX) |
Yes |
|
Volume control |
Yes |
|
|
|
|
External speaker jack (3.5mm mono) |
Yes |
|
Squelch Control |
Digital 7 step |
|
Signal strength meter with RX indicator in display |
3 step no LED |
|
RF power meter with TX indicator in display |
3 step no LED |
|
Talk confirmation tone(Roger Beep) |
Yes |
|
Busy channel Lock-out |
Yes |
|
Monitor function |
Yes |
|
Key Lock |
Yes |
|
Keypad Tones (ON/OFF) |
Yes |
|
Time-out timer (2.3 minutes) |
Yes |
|
|
|
|
Channel Scan |
Yes |
|
Priority channel setting |
Yes |
|
Memory auto back up (eeprom) |
Yes |
|
|
|
|
Die cast Heat sink for improved heat dispersion |
Yes |
|
Over voltage warning system (LCD backlight blinks) |
Yes |
|
ALC (Automatic Level Control) |
Yes |
