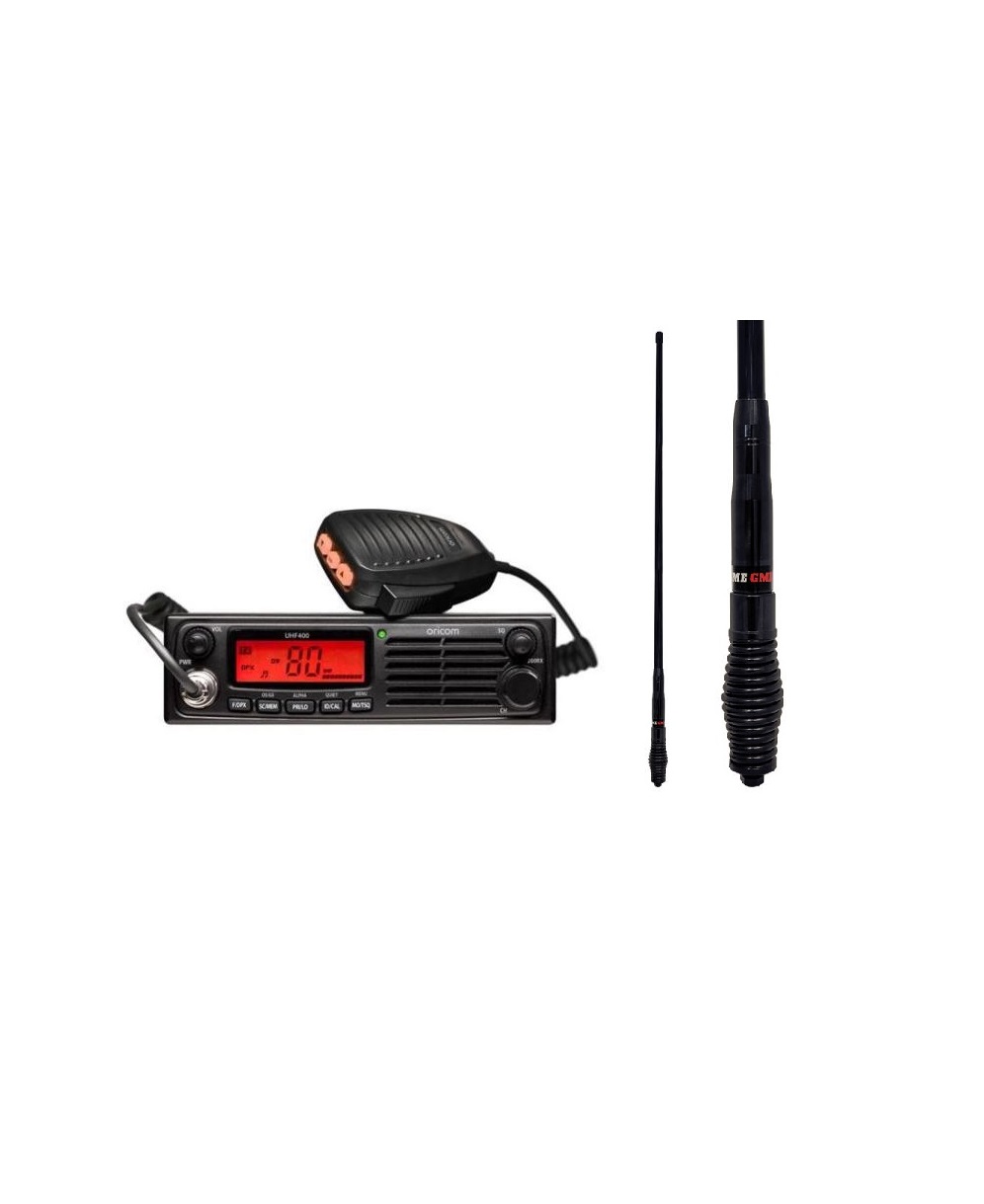

ORICOM UHF400R HEAVY DUTY 80 CHANNEL UHF CB RADIO
5 YEAR WARRANTY
HEAVY DUTY 5WATT UHF CB RADIO
Built for Australian Transport
The NEW UHF400 is a heavy duty 5watt UHF CB that is especically built for Australian Transport. Oricom's UHF400 features 12v/24v auto switching which makes it a quick and easy to install in any truck regardless of power supply.
The external heat sink ensures you maintain a full 5watt power output and has tuned sensativity to ensure optimal receiption.
80 CHANNELS*
Allows you to choose from 80 transmission frequencies (75 voice) to transmit or receive messages.
12v/24v Auto Switching
For easy installation into any vehicle regardless of power supply.
Automatic Level Control (ALC)
For consistent audio outpout levels.
5 Watt Maximum TX Output Power
Maximum transmit power for best possible range.
200 Receive Only Channels
Allows you to program in other channels in the UHF frequency between 400MHz to 512MHz and monitor transmissions.
Duplex (Range Extender) Capability
Local repeater stations rrea. This extends the effective range of the radio, giving you the greater reach.
38 interference eliminator codes (CTCSS)
Block out any unwanted conversations
Open/Group/Priority scanning
Gives you the option to scan all channels in memory and lock on any active channels or to select the channels you wish to monitor/listen to in a group, along with a priority channel (priority watch).
Large easy to read Colour LCD display (green/amber)
The keypypad and Liquid Crystal Display (LCD) is backlit for easy viewing at night or in low light situations.
Rugged chassis construction with integrated heat sink
The external heat-sink cools quickly, ensuring the radio maintains the highest possible output power.
3 year warranty - Peace of mind. Buy your Oricom product with confidence.
length is 17.5cm width 9cm height is 5.5cm
bracket 8.8cm width 18 cm height 5.5 cm
Operating Frequency 476.425- 477.4125MHz
Transmit TX power (erp) 5 watts max
Operating volts Range 10 - 30 VDC
Channels 80* channels
User Programmable RX channels 200 CH
Wide band scanner 400MHz to 512MHz Yes
Default: 400 -512MHz full band Yes
Band A: 400 ~420Mhz, Yes
Band B: 420~450Mhz, Yes
Band C: 450~470Mhz, Yes
Band D 470~512Mhz Yes
Interference Eliminator codes (CTCSS) 38 codes
Digital Coded Squelch (DCS) 104 privacy codes
LCD Backlit display color Amber/green/
5 tone selective (SELCALL) calling with 5 ID support Yes
Pocket beep function for 5 tone Selcall Yes
User programmable SELCALL Yes
SELCALL group scan Yes
SELCALL Quiet mode operation Yes
Smart ring and automatic transponder alarm system Yes
Alpha name tag display function Yes
OPEN/Group scan and priority channel watch Yes
User programable 4 step scan resume timer control (5, 10, 15 sec after stop and 5 sec after RX) Yes
Volume control Yes
External speaker jack (3.5mm mono) Yes
Squelch Control Digital 7 step
Signal strength meter with RX indicator in display 3 step no LED
RF power meter with TX indicator in display 3 step no LED
Talk confirmation tone(Roger Beep) Yes
Busy channel Lock-out Yes
Monitor function Yes
Key Lock Yes
Keypad Tones (ON/OFF) Yes
Time-out timer (2.3 minutes) Yes
Channel Scan Yes
Priority channel setting Yes
Memory auto back up (eeprom) Yes
Die cast Heat sink for improved heat dispersion Yes
Over voltage warning system (LCD backlight blinks) Yes
ALC (Automatic Level Control) Yes
GME AE4705B BLACK 6.6DBi 1.20M UHF 477MHZ ANTENNA HEAVY DUTY FIBREGLASS
LIMITED STOCK AVAILABLE NOW GET IN QUICK BEFORE THEY RUN
Most Rugged And Strongest Built Antennas Available
THIS LISTING IS FOR THE BLACK COLOUR WHIP.THE SPRING IS COATED WITH A BLACK TEXTURE TOO.
The AE4705 is a ground independent colinear antenna with 6.6dBi gain. Using 5/8 wave over 1/4 array the antenna is only 1.20m and is ideal for use around the city when needing to access low parking garages etc.excellent for the country areas as well.
Specifications
-
Type: Ground independent Colinear
-
Frequency: 477 MHz
-
Length: 1200 mm INCLUDING THE SPRING
-
Tuning: Factory Pretuned
-
VSWR: 1.5 to 1
-
Power: 50 watts
-
Impedance: 50 Ohms
-
Gain: 4.5db Equivalent to 6.6dbi
-
4.5m of cable with pl259 plug included
-
Termination: UHF PL259
-
HEAVY DUTY SPRING
Suitable 4WD or Off-Road Antenna
Bull bar and/ or nudge bar mounting
Heavy Duty Spring
black Heavy Duty Fibrereglass whip
