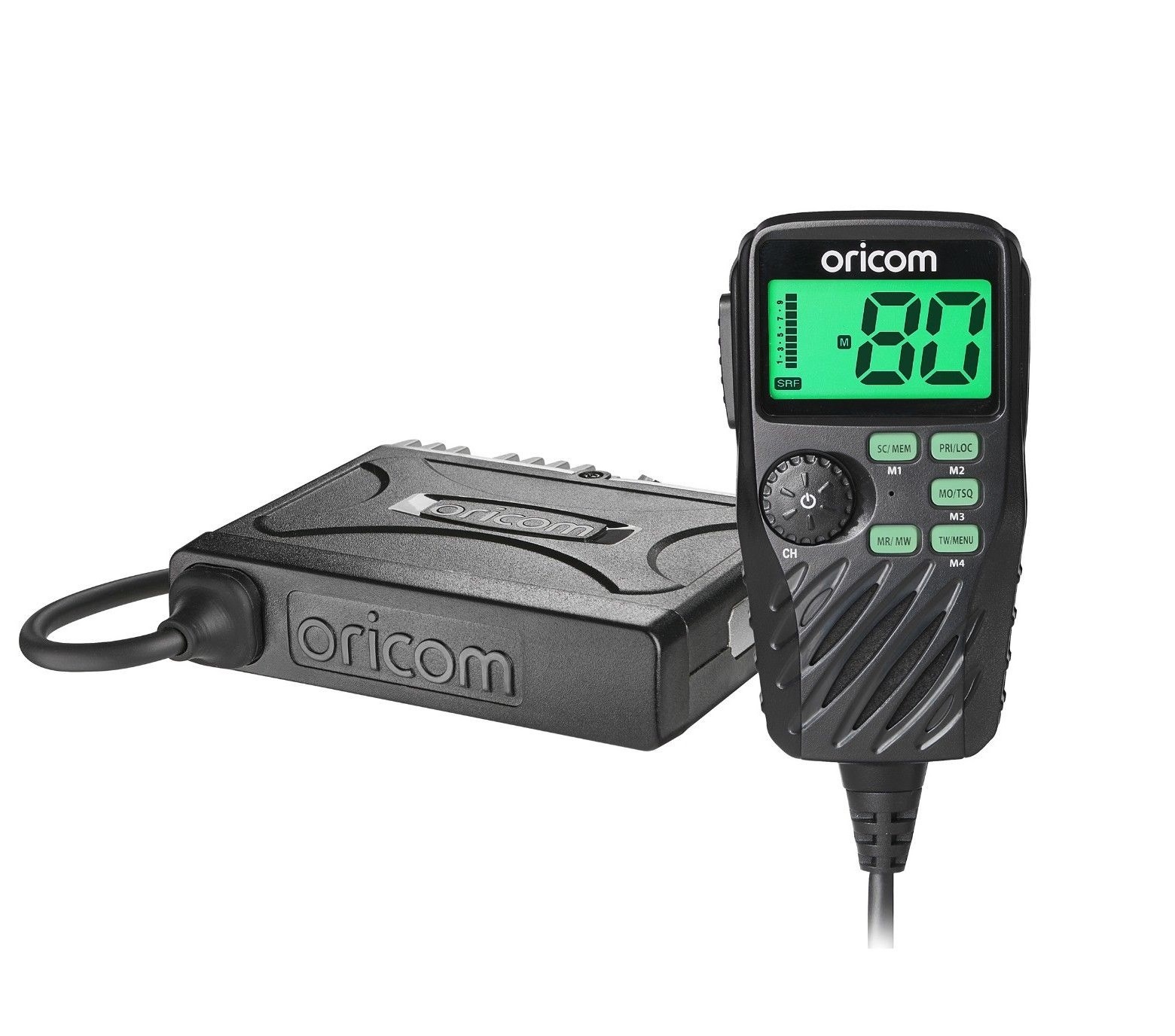

ORICOM UHF390 5 WATT 80 CHANNEL UHF RADIO WITH REMOTE MICROPHONE FUNCTION
5 YEAR AUSTRALIA WARRANTY
FREE TRACKABLE POST AUSTRALIA WIDE
Key Features
• 80 Narrowband channels*
• 5 watts (max TX power)
• Heavy duty controller speaker microphone
• Ultra compact transceiver
• Rotary volume & channel knob
• CTCSS and DCS
• Tri colour backlit LCD display (Amber/Red/Green)
• Duplex (range extender)
• Open/Priority and Instant Channel Scan
• Digital squelch control
• Busy channel lockout
• Rugged chassis construction with integrated heat sink
|
Number of TX/RX Channels |
80 UHF CB |
|
|
|
|
Channel Spacing TX/RX |
12.5KHz |
|
|
|
|
Operating modes |
Simplex, Repeater TX offset (+750kHz) |
|
Selcall ID |
5 Digit with alpha display |
|
Scanning Speed |
130 msec per channel |
|
Antenna Impeadance |
50 Ohms |
|
Operating Volts nominal |
13.8 VDC |
|
Operating Volts Range |
10 to 15 VDC |
|
Over Voltage Protection |
Diode and voltage regulator |
|
Over Current Protection |
2 Amp fuse |
|
Reverse Polarity Protection |
Shunt diode |
|
Frequency Stability |
+/- 5ppm |
|
Transmitter
|
|
|
RF Output Power |
Nominal 5watts |
|
Modulation |
F3E (FM) |
|
Maximum Deviation |
2.5kHz |
|
Spurious Emissions |
< -30 dBm |
|
TX Audio pre-emphasis |
+ 6dB/octave from 300Hz to 3kHz |
|
Current Consumption during TX |
1.6 Amps with 50 Ohm antenna termination |
|
Reciever |
|
|
Circuit Type |
Dual conversion superheterodyne |
|
IF Frequencies |
1st IF = 21.4MHz , 2nd IF = 450kHz |
|
Current Consumption during RX |
200mA |
|
Sensitivity |
< -123dBm at 12dB SINAD |
|
Sensitivity Receive only channels |
< -110dBm for 12dB SINAD |
|
Selectivity |
+/-3.75kHz min @ 3dB to +/-15kHz max @ 40dB |
|
Intermodulation Immunity |
> 70dB |
|
Spurious Immunity |
> 70dB |
|
Audio Output Power |
3 Watts Maximum |
|
RX Audio de-emphasis |
-6dB/octave 300Hz to 3kHz |
|
Audio frequency response |
300Hz to 3kHz |
|
External speaker jacks |
One on transceiver one on head unit for optional 8 Ohm mono speaker (3.5mm jack.) |
|
Transciever
|
|
|
Dimensions |
135 (d) x 110 (w) x 29 (h) mm |
|
Weight |
420g |
