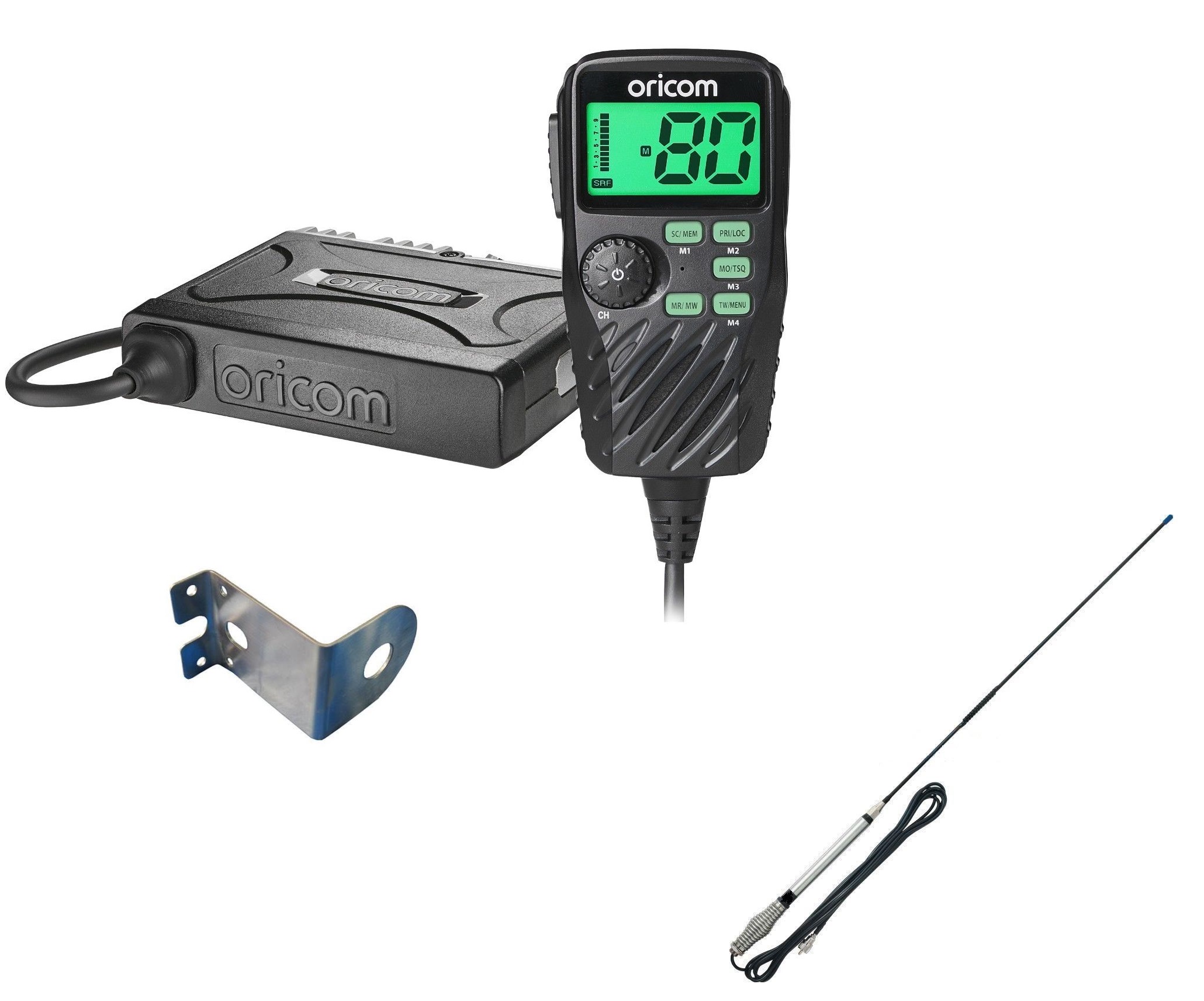

ORICOM UHF390 5 WATT UHF RADIO+ UNIDEN AT870 ANTENNA PACK
5 YEAR AUSTRALIA WARRANTY
FREE EXPRESS POST AUSTRALIA WIDE
ORICOM UHF390 UHF RADIO
Key Features
• 80 Narrowband channels*
• 5 watts (max TX power)
• Heavy duty controller speaker microphone
• Ultra compact transceiver
• Rotary volume & channel knob
• 5 Digit Selcall ID with alpha display
• CTCSS and DCS
• Tri colour backlit LCD display (Amber/Red/Green)
• Duplex (range extender)
• Open/Priority and Instant Channel Scan
• Digital squelch control
• Busy channel lockout
• Rugged chassis construction with integrated heat sink
|
Compliance
|
AS/NZS 4365:2011
|
|
|
|
|
Number of TX/RX Channels
|
80 UHF CB
|
|
|
|
|
Channel Spacing TX/RX
|
12.5KHz
|
|
|
|
|
Operating modes
|
Simplex, Repeater TX offset (+750kHz)
|
|
Selcall ID
|
5 Digit with alpha display
|
|
Scanning Speed
|
130 msec per channel
|
|
Antenna Impeadance
|
50 Ohms
|
|
Operating Volts nominal
|
13.8 VDC
|
|
Operating Volts Range
|
10 to 15 VDC
|
|
Over Voltage Protection
|
Diode and voltage regulator
|
|
Over Current Protection
|
2 Amp fuse
|
|
Reverse Polarity Protection
|
Shunt diode
|
|
Frequency Stability
|
+/- 5ppm
|
|
Transmitter
|
|
|
RF Output Power
|
Nominal 5watts
|
|
Modulation
|
F3E (FM)
|
|
Maximum Deviation
|
2.5kHz
|
|
Spurious Emissions
|
< -30 dBm
|
|
TX Audio pre-emphasis
|
+ 6dB/octave from 300Hz to 3kHz
|
|
Current Consumption during TX
|
1.6 Amps with 50 Ohm antenna termination
|
|
Reciever
|
|
|
Circuit Type
|
Dual conversion superheterodyne
|
|
IF Frequencies
|
1st IF = 21.4MHz , 2nd IF = 450kHz
|
|
Current Consumption during RX
|
200mA
|
|
Sensitivity
|
< -123dBm at 12dB SINAD
|
|
Sensitivity Receive only channels
|
< -110dBm for 12dB SINAD
|
|
Selectivity
|
+/-3.75kHz min @ 3dB to +/-15kHz max @ 40dB
|
|
Intermodulation Immunity
|
> 70dB
|
|
Spurious Immunity
|
> 70dB
|
|
Audio Output Power
|
3 Watts Maximum
|
|
RX Audio de-emphasis
|
-6dB/octave 300Hz to 3kHz
|
|
Audio frequency response
|
300Hz to 3kHz
|
|
External speaker jacks
|
One on transceiver one on head unit for optional 8 Ohm mono speaker (3.5mm jack.)
|
|
Transciever
|
|
|
Dimensions
|
135 (d) x 110 (w) x 29 (h) mm
|
|
Weight
|
420g
|
UNIDEN AT870 FIBREGLASS BLACK UHF 6.5DB ANTENNA
ANTENNA IS MADE IN AUSTRALIA
• UHF 477MHz CB 6.5DB Gain Antenna 950MM In Length
• 5M RG58 FME Socket Terminated with UHF Adaptor
• Spring Mounted with Elevated Base and 5 Metre Cable
2 Year Warranty
WORKS ON ALL UHF VEHICLE RADIOS IN AUSTRALIA AND NEW ZEALAND
