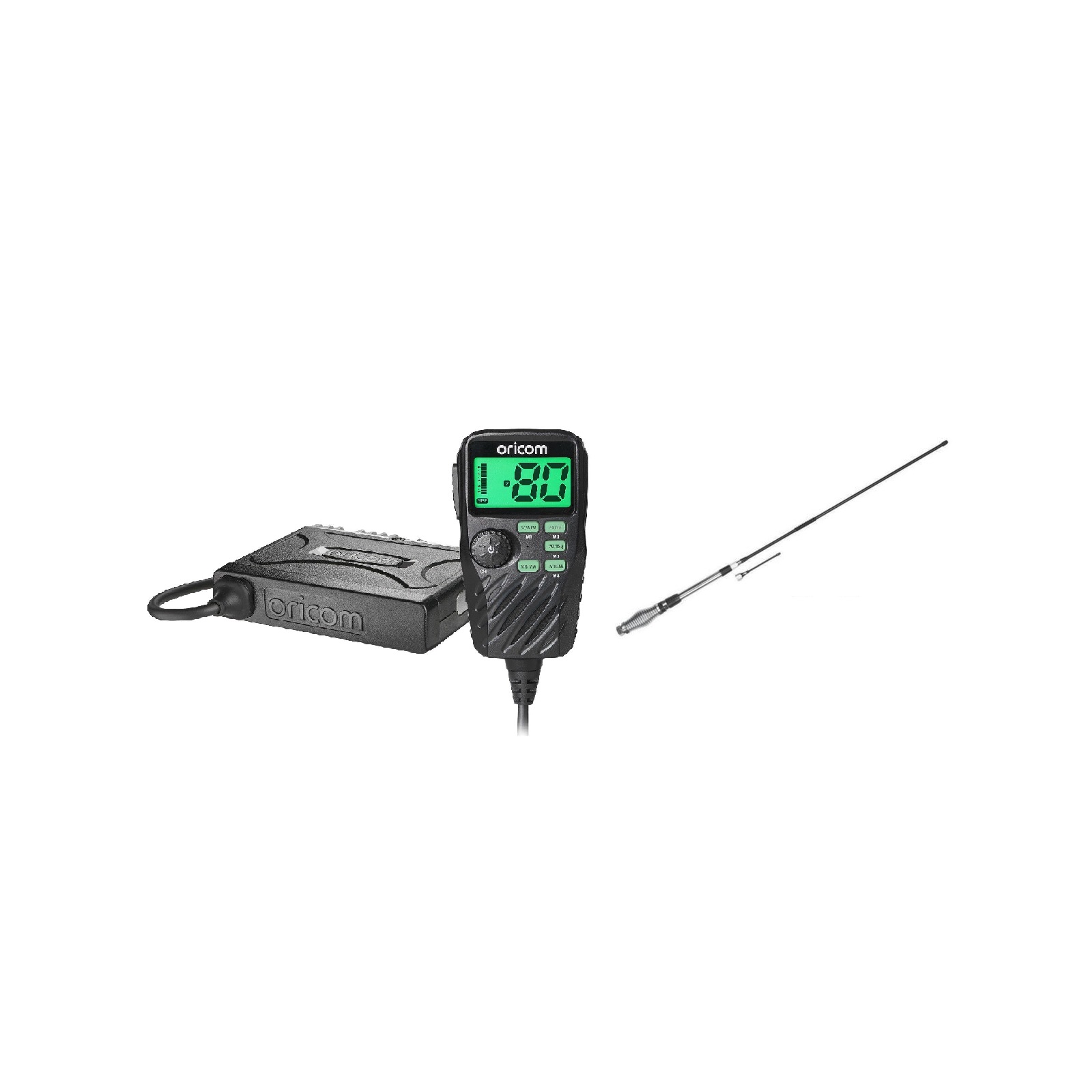

ORICOM UHF390 5 WATT 80 CHANNEL UHF RADIO+UNIDEN AT880 TWIN ANT

Item#: 4198

$339.77 AU$308.88

Free Shipping Australia Wide

ORICOM UHF390 5 WATT 80 CHANNEL UHF RADIO+UNIDEN AT880 TWIN ANTENNA 6.6DBI

FREE TRACKABLE POST AUSTRALIA WIDE

ORICOM UHF390 5 WATT 80 CHANNEL UHF RADIO WITH REMOTE MICROPHONE FUNCTION

5 YEAR AUSTRALIA WARRANTY

Key Features

• 80 Narrowband channels*

• 5 watts (max TX power)

• Heavy duty controller speaker microphone

• Ultra compact transceiver

• Rotary volume & channel knob

• 5 Digit Selcall ID with alpha display

• CTCSS and DCS

• Tri colour backlit LCD display (Amber/Red/Green)

• Duplex (range extender)

• Open/Priority and Instant Channel Scan

• Digital squelch control

• Busy channel lockout

• Rugged chassis construction with integrated heat sink

Compliance	AS/NZS 4365:2011

Number of TX/RX Channels	80 UHF CB

Channel Spacing TX/RX	12.5KHz

Operating modes	Simplex, Repeater TX offset (+750kHz)
Selcall ID	5 Digit with alpha display
Scanning Speed	130 msec per channel
Antenna Impeadance	50 Ohms
Operating Volts nominal	13.8 VDC
Operating Volts Range	10 to 15 VDC
Over Voltage Protection	Diode and voltage regulator
Over Current Protection	2 Amp fuse
Reverse Polarity Protection	Shunt diode
Frequency Stability	+/- 5ppm
Transmitter
RF Output Power	Nominal 5watts
Modulation	F3E (FM)
Maximum Deviation	2.5kHz
Spurious Emissions	< -30 dBm
TX Audio pre-emphasis	+ 6dB/octave from 300Hz to 3kHz
Current Consumption during TX	1.6 Amps with 50 Ohm antenna termination
Reciever
Circuit Type	Dual conversion superheterodyne
IF Frequencies	1st IF = 21.4MHz , 2nd IF = 450kHz
Current Consumption during RX	200mA
Sensitivity	< -123dBm at 12dB SINAD
Sensitivity Receive only channels	< -110dBm for 12dB SINAD
Selectivity	+/-3.75kHz min @ 3dB to +/-15kHz max @ 40dB
Intermodulation Immunity	> 70dB
Spurious Immunity	> 70dB
Audio Output Power	3 Watts Maximum
RX Audio de-emphasis	-6dB/octave 300Hz to 3kHz
Audio frequency response	300Hz to 3kHz
External speaker jacks	One on transceiver one on head unit for optional 8 Ohm mono speaker (3.5mm jack.)
Transciever
Dimensions	135 (d) x 110 (w) x 29 (h) mm

UNIDEN AT880 TWIN 6.6iDB+3DB UHF CB FIBREGLASS ANTENNA KIT

The AT880 TWIN is a highly flexible and heavy duty whip suitable for 4WD. Engineered and designed for all round use, flat terrain, town and country, the AT880 TWIN is a rugged and durable antenna to suit your driving needs. Ground independent with an included 14cm 3.0 dBi Gain whip, provides excellent performance and perfect flexibility to tune channels, ideal for your vehicle. A high quality elevated feed and fibreglass whip with black heat shrink, the AT880 TWIN is a solid choice for heavy usage, engineered for the toughest conditions and off road environments.

Suitable for Sedan, Trucking, 4WD & Agricultural & Construction Equipment

Key Features

Elevated Feed and Fibreglass Whip with Black Heat Shrink 6.6 dBi Gain

Incl. 14cm 3.0 dBi Gain

Highly Flexible Whip

Heavy Duty Barrel Style Stainless Steel Spring

Length: 932mm/442mm

Ground Independent

4.5 Metres Low Loss Coax Cable

Terminated FME Female Connector and PL259 Adaptor
