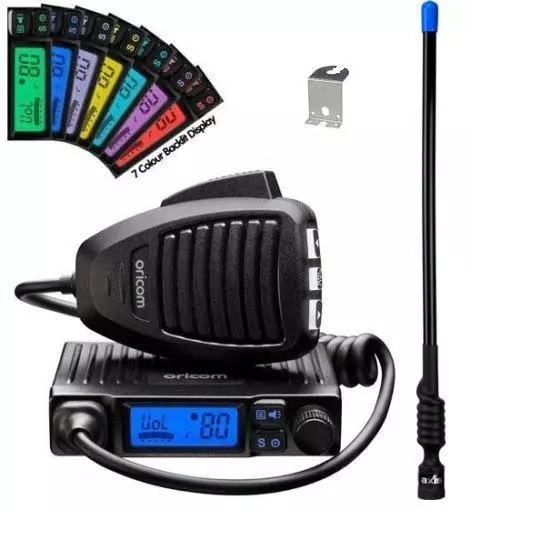

ORICOM UHF310 UHF 80 CHANNEL MICRO 5WATT RADIO+CH300 FLEXIBLE RUBBER DUCKY AXIS UHF ANTENNA 35CM IN HEIGHT+BONUS Z MOUNT
FLIP FEATURE WITH DIFFERENT COLOUR SCREEN
UHF310 WILL BE SENT WHICH IS THE UPGRADED MODEL
We recommend this radio for customers who just want a basic radio with basic send and receive functions and also for customers who don't have much room or space within the vehicle. You really don't need too much than this for basic users. Our customers ask us for a basic radio and this is the one for you.
Key Features
5.0 Watts (max TX power)
80 Narrowband Channels*
Ultra compact micro size
Flip LCD function
Automatic level control (ALC) for consistant audio levels
Heavy-duty microphone with volume control
38 CTCSS and 104 DCS Codes
7 Colour backlit display
Duplex (range extender)
Open/Group Scan
Priority channel
Rotary channel select
Digital squelch control
Busy channel lockout
Die cast metal chassis with integrated heat sink
Optional external speaker (3.5mm jack)
Dimensions of transceiver: 22.5(h) x 100 (w) x 84 (d) mm
Designed and engineered in Korea
UHF300 Technical Specification
Compliance AS/NZS 4365:2011
Frequency Range 476.425 - 477.4125 MHz
Number of TX/RX Channels 80 UHF CB (75 Voice channels)
Channel Spacing TX/RX 12.5KHz
Operating modes Simplex, Repeater TX offset (+750kHz)
Scanning Speed 130 msec per channel
Automatic Level control (ALC) For consistant audio levels
Antenna Impeadance 50 Ohms
Operating Volts nominal 13.8 VDC
Operating Volts Range 10 to 15 VDC
Over Voltage Protection voltage regulator
Over Current Protection 2 Amp fuse
Reverse Polarity Protection Series diode
Frequency Stability +/- 2.5ppm
Transmitter
RF Output Power 5watts max.
Modulation F3E (FM)
Maximum Deviation 2.5KHz
Spurious Emissions < -70 dBc
TX Audio pre-emphasis + 6dB/octave from 300Hz to 3kHz
Current Consumption during TX 1.5 Amps with 50 Ohm antenna termination
Reciever
Circuit Type Dual conversion superheterodyne
IF Frequencies 1st IF = 21.4MHz , 2nd IF = 450kHz
Current Consumption during RX 200mA
Sensitivity < -121 at 12dB SINAD
Selectivity +/-3.75kHz min @ 3dB to +/-15kHz max @ 40dB
Intermodulation Immunity > 70dB
Spurious Immunity > 70dB
Audio Output Power 3 Watts Maximum
RX Audio de-emphasis -6dB/octave 300Hz to 3kHz
Audio frequency response 300Hz to 3kHz
External speaker jacks for optional 8 Ohm mono speaker (3.5mm jack)
Manufactured by: ORICOM AUSTRALIA
+
FLEXI BLACK FLEXIBLE UHF ANTENNA CH300 RUBBER DUCKY AXIS
2 YEAR WARRANTY
FREE REGISTERED TRACKABLE POSTAGE AUSTRALIA WIDE
This antenna can be used for universal type mountings as it is ground plane independant, ESPECIALLY WHERE THE ANTENNA MAY BE SUBJECTED TO TREES ETC BECAUSE OF IT'S FLEXIBLE DESIGN, the CH300 is Black nylon plastic type material with 4m of low loss coaxial cable. Antenna length is 350mm top to base and 3.0 db of gain. There is a fme connector pre-fitted the end of the cable so you thread the cable through a 9.5mm hole , then screw on the UHF pl259 connector also included to the end of that which is included for simpler fit with soldering or cutting required.
CONTENTS:
DUCKY ANTENNA
4 METRE CABLE
PL259 CONNECTOR
