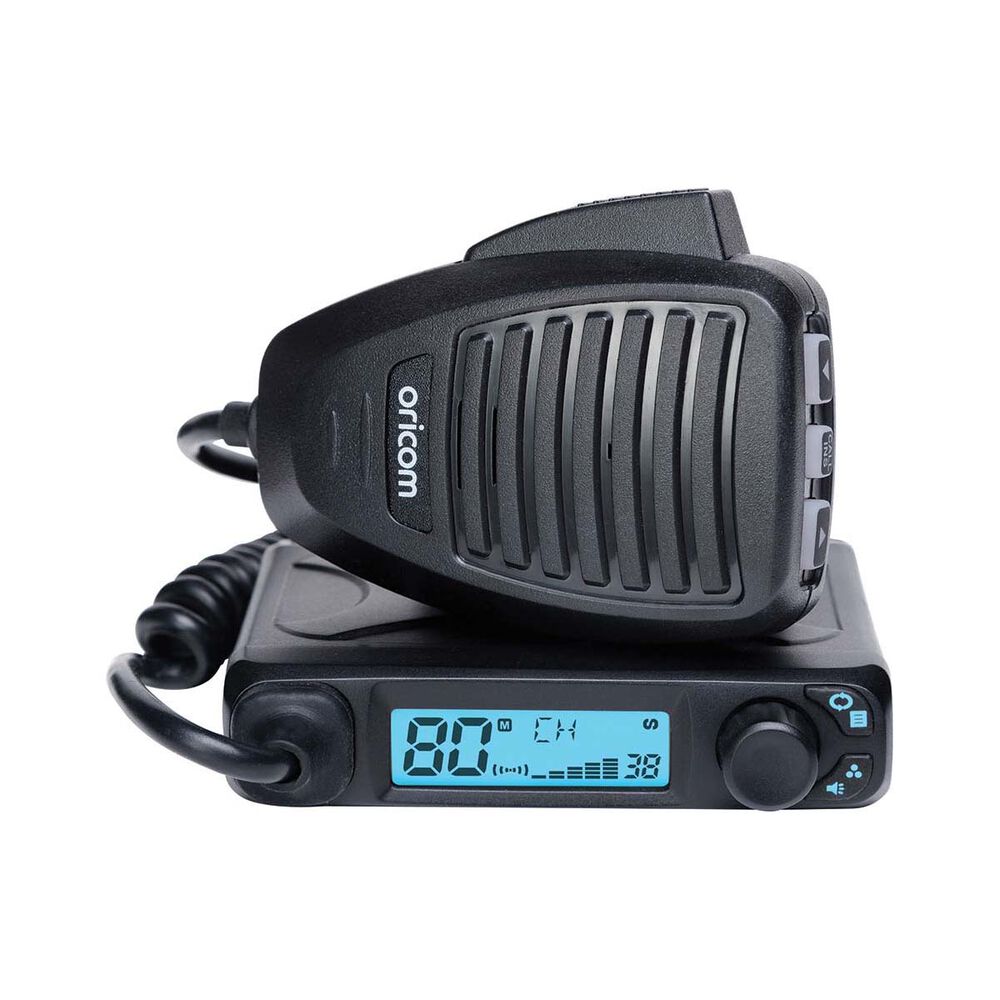

ORICOM UHF300 UHF MICRO 5 WATT 80CH CB RADIO+6.5DBi ANTENNA PK

Item#: 2692

$230.87 AU$209.88

Free Shipping Australia Wide

ORICOM UHF300 UHF 80 CHANNEL MICRO 5 WATT RADIO+ANU200 6.5DBI FIBREGLASS UHF ANTENNA+ Z MOUNT BRACKET PACKAGE LIMITED STOCK

5 YEAR ORICOM AUSTRALIA WARRANTY

WHATS INCLUDED WITH THIS PACK

UHF300 UHF RADIO

HEAVY DUTY MICROPHONE WITH VOLUME CONTROL

MICROPHONE HANGER

DC POWER CORD CABLE

MOUNTING BRACKET FOR THE UHF

OWNERS MANUL

ORICOM ANU200 UHF 6.5DBi ANTENNA

ORICOM Z MOUNT STAINLESS STEEL

FLIP FEATURE WITH DIFFERENT COLOUR SCREEN

Key Features

• 5.0 Watts (max TX power)

• 80 Narrowband Channels*

• Ultra compact micro size

• Flip LCD function

• Automatic level control (ALC) for consistant audio levels

• Heavy-duty microphone with volume control

• 38 CTCSS and 104 DCS Codes

• 7 Colour backlit display

• Duplex (range extender)

• Open/Group Scan

• Priority channel

• Rotary channel select

• Digital squelch control

• Busy channel lockout

• Die cast metal chassis with integrated heat sink

• Optional external speaker (3.5mm jack)

• Requires external antenna (not supplied)

• Dimensions of transceiver: 22.5(h) x 100 (w) x 84 (d) mm

Designed and engineered in Korea

UHF300 Technical Specification

Compliance AS/NZS 4365:2011

Frequency Range 476.425 - 477.4125 MHz

Number of TX/RX Channels 80 UHF CB (75 Voice channels)

Channel Spacing TX/RX 12.5KHz

Operating modes Simplex, Repeater TX offset (+750kHz)

Scanning Speed 130 msec per channel

Automatic Level control (ALC) For consistant audio levels

Antenna Impeadance 50 Ohms

Operating Volts nominal 13.8 VDC

Operating Volts Range 10 to 15 VDC

Over Voltage Protection voltage regulator

Over Current Protection 2 Amp fuse

Reverse Polarity Protection Series diode

Frequency Stability +/- 2.5ppm

Transmitter

RF Output Power 5watts max.

Modulation F3E (FM)

Maximum Deviation 2.5KHz

Spurious Emissions < -70 dBc

TX Audio pre-emphasis + 6dB/octave from 300Hz to 3kHz

Current Consumption during TX 1.5 Amps with 50 Ohm antenna termination

Reciever

Circuit Type Dual conversion superheterodyne

IF Frequencies 1st IF = 21.4MHz , 2nd IF = 450kHz

Current Consumption during RX 200mA

Sensitivity < -121 at 12dB SINAD

Selectivity +/-3.75kHz min @ 3dB to +/-15kHz max @ 40dB

Intermodulation Immunity > 70dB

Spurious Immunity > 70dB

Audio Output Power 3 Watts Maximum

RX Audio de-emphasis -6dB/octave 300Hz to 3kHz

Audio frequency response 300Hz to 3kHz

External speaker jacks for optional 8 Ohm mono speaker (3.5mm jack)

• UHF 477MHz CB 6.5DB Gain Antenna 950mm in height

• 5M OF CABLE, RG58 FME Socket Terminated with UHF Adaptor

• Heavy Duty Spring Mounted with Elevated Base and 4.3 Metre Cable

A 6.5dbi antenna with elevated feed, counter balanced spring and solid black fiberglass whip. This unit include 4.3m of low-loss coaxial cable and a PL259 connector.

Use:
This antenna configuration is by far the most popular on the Australian market. Ideal for use in four-wheel drives, or for vehicles with diesel engines. The heavy duty spring is designed to absorb the vibrations from the engine and/or rough corrugated roads for better performance.

This antenna allows for a variety of mounting options from bullbar, gutter to wing mount. A specific bracket will be required depending on the mounting option chosen (bracket not supplied). The 6.5dBi high-gain low SWR antenna gives the best "all-round" transmit and receive performance.
