LM8102 SOUND LEVEL METER ANEMOMETER HUMIDITY TEMP LIGHT LUX

LM8102 SOUND LEVEL METER

Sound, Anemometer, Anemometer, %RH, Temp., Type K

5 IN 1 METER

LUTRON ELECTRONIC

5 in 1

Anemometer, Humidity meter, Light Meter,

Thermometer, Sound level meter

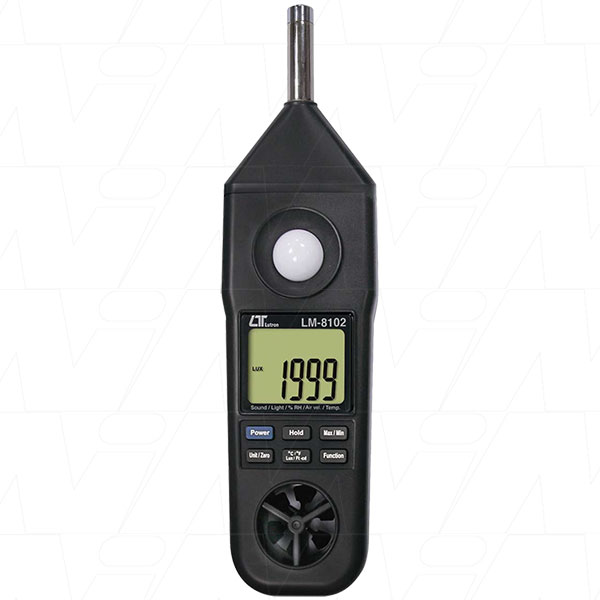

Model : LM-8102

FEATURES

* 5 in 1 professional measuring instrument: Anemometer, Type K Thermometer

Hygrometer, Type K Thermometer, Light meter.

Sound level meter. Measurement Range Resolution

* Anemometer use low-friction ball bearing mounted Temperature ( Type K ) -148 to 2372 ℉ 0.1 ℉

wheel design provides high accuracy. -100 to 1300 ℃ 0.1 ℃

* Light meter use exclusive photo diode and color

correction filter light sensor, spectrum meets C.I.E. Measurement Range Accuracy

photopic. Temperature -148 to 2372 ℉ ± (1% rdg + 2℉)

* Type K thermometer use standard type K (NiCr-NiAl) ( Type K ) -100 to 1300 ℃ ± (1% rdg + 1℃)

thermocouple input jack suitable for all kinds of type

K probe. Anemometer ( Air velocity/Temp. )

* Humidity meter use high precision humidity sensor

with fast response time. Measurement Range Resolution

* Sound level meter's characteristic is simulated as Air velocity ft/min 80 to 5910 ft/min 1 ft/min

" Human Ear Listing" response, used the " A " frequency m/s 0.4 to 30.0 m/s 0.1 m/s

weighting and " Fast " time weighting to meet IEC km/h 1.4 to 108.0 km/h 0.1 km/h

61672 class 2. MPH 0.9 to 67.0 mile/h 0.1 MPH

* Sound level meter can cooperate the external 94 dB knots 0.8 to 58.3 knots 0.1 knots

sound calibrator and just press the front buttons to make Temperature 32 to 122 ℉ 0.1 ℉

the calibration ( Semiconductor) 0 to 50 ℃ 0.1 ℃

* Built- in microprocessor circuit assures excellent

performance and accuracy. Measurement Range Accuracy

* Concise and compact buttons arrangement, easy operation. Air velocity 80 to 5910 ft/min

* Memorize the maximum and minimum value with recall. 0.4 to 30.0 m/s ≦ 20 m/s : ± 3% F.S.

* Hold function to freeze the current reading value. 1.4 to 108.0 km/h > 20 m/s : ± 4% F.S.

* ℃/℉ detection by pressing button on the front panel. 0.9 to 67.0 mile/h

* Lux/Feet-candle selection by pressing front button. 0.8 to 58.3 knots

* Air velocity measuring units selection by pressing button 32 to 122 ℉ ± 2.5 ℉

on the front panel for five kinds of units. 0 to 50 ℃ ± 1.2 ℃

* Multi channel display for relative humidity and Remark :

temperature measured values or air velocity and ft/min : feet per minute MPH : miles per hour

temperature measured values at the same time. m/s : meters per second knots : nautical miles per hour

* Zero button design makes light meter calibration. km/h : kilometers per hour

* Rough housing case suitable for handling with one hand,

* RS232/USB computer data bus Light

GENERAL SPECIFICATIONS Measurement Range Resolution

Display LCD display, LCD soze : 41.5 x 31.5 mm. Light Lux 0 to 2,200 Lux 1 Lux

Measurement 5 in 1 : 1,800 to 20,000 Lux 10 Lux

Anemometer ( Air velocity + Temp. ) * auto range Ft-cd 0 to 204.0 Fc 0.1 Ft-cd

Humidity ( %RH + Temp. ) 170 to 1,860 Fc 1 Ft-cd

Light Temperature ( Type K ) -148 to 2372 ℉ 0.1 ℉

Thermometer ( type K ) -100 to 1300 ℃ 0.1 ℃

Sound level

Operating Max. 80 %RH. Measurement Range Accuracy

Humidity Light 0 to 20,000 Lux ± 5% rdg ± 8 dgt

Operating 0 to 50° C (32 to 122° F) 0 to 1,860 Fc

Temperature Temperature -148 to 2372 ℉ ± (1% rdg + 2℉)

Over Input Indication of "- - - - " ( Type K ) -100 to 1300 ℃ ± (1% rdg + 1℃)

Display Remark : Ft-cd : feet candle

Data Output RS 232/USB PC serial interface.

* Connect the optional RS232 cable Sound Level

UPCB-02 will get the RS232 plug.

* Connect the optional USB cable Measurement Auto range

USB-01 will get the USB plug. Range 35 to 130 dB, 3 ranges :

Power Supply DC 1.5 V battery ( UM4, AAA ) x 4 PCs, range 1 - 35 to 80 dB,

Or DC 9V adapter input. @ AC/DC power adapter is optional. range 2 - 50 to 100 dB,

Power Anemometer : Approx. DC 11 mA. range 3 - 80 to 130 dB,

Consumption Other functions : Approx. DC 7.5 mA. Resolution 0.1 dB.

Weight 335 g/0.74 LB ( battery included ). Measurement 31.5 Hz to 8,000 Hz.

Dimension HWD 248 x 70 x 34 mm ( 9.8 x 2.8 x 1.3 inch). Frequency

Standard Instruction Manual.............................. 1 PC Weighting Frequency Characteristics of " A " frequency

Accessory Weighting weighting network.

Optional Carrying case. * A weighting :

Accessories Type K Temperature probe. The characteristic is simulated as

Sound Calibrator/SC-941. " Human Ear Listing " response.

USB cable/USB-01. Time " Fast " time weighting.

RS232 cable/UPCB-02. Weighting

Data Acquisition software, SW-U801-WIN. Accuracy Characteristics of " A " frequency weighting

AC to DC power adapter. (23± 5 ℃) network meet IEC 61672 class 2.

Under 94 dB input signal, the accuracy

ELECTRICAL SPECIFICATION ( 23 ±5℃ ) are :

31.5 Hz ± 3.5 dB

Hygrometer ( Humidity/Temp. ) 63 Hz ± 2.5 dB

125 Hz ± 2.0 dB

Measurement Range Resolution 250 Hz ± 1.9 dB

Humidity %RH 10 to 95 %RH 0.1 %RH 500 Hz ± 1.9 dB

Temperature 32 to 122 ℉ 0.1 ℉ 1 K Hz ± 1.4 dB

( Semiconductor) 0 to 50 ℃ 0.1 ℃ 2 K Hz ± 2.6 dB

4 K Hz ± 3.6 dB

Measurement Range Accuracy 8 K Hz ± 5.6 dB

Humidity 10 to 95 %RH < 70 %RH :

± 4 %RH Calibrator B & K (Bruel & kjaer), multi-fuction

acoustic calibrator, model : 4226.

≧70 %RH : Microphone Electric condenser microphone.

± ( 4%rdg + 1.2 %RH ) Size of microphon1/2 inch standard size.

Data Hold Hold function to freeze the display value.

32 to 122 ℉ ± 2.5 ℉ Optional 94 dB Sound Calibrator,

0 to 50 ℃ ± 1.2 ℃ Accessories Model : SC-941

* Appearance and specifications listed in this brochure are subject to change without notice. 0806-LM8102
