LIGHTFORCE CBFASCIA2 HOLDEN COLORADO SWITCH FASCIA PANEL MY17 MODEL - USES TOYOTA

FREE SHIPPING AUSTRALIA WIDE

1 YEAR AUSTRALIAN WARRANTY

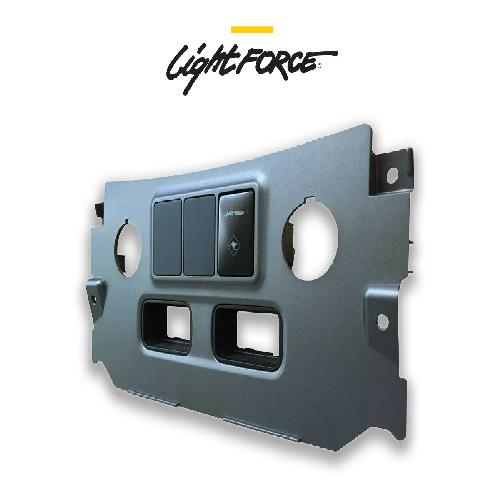

LIGHTFORCE SWITCH FASCIA PANEL KIT TO FIT HOLDEN COLORADO MY17 2017 ONWARDS

This replaces the existing fascia that is located in the central lower dash that has the 2 12v outlets and is compatible with all 13 models MY17 Holden Colorado's from the base 2x4 models to the 4x4 Z71.

The fascia is a direct replacement injected moulded ABS/PC panel, with zero modification to the existing surrounding console, enhancing the OEM look of the vehicle. It will accommodate 5 standard OEM style switches or 3 OEM style switches when the existing heater switches are utilised (Z71 model).

Standard OEM style switches used are the popular and readily available aftermarket Toyota switches Lightforce part # CBSWTY2 (top row) and CBSWTY (bottom row). The Lightforce dual switch CBSWTY2D is also compatible allowing for up to 6 individual switched outputs from the top row locations.

A single switch (CBSWTY2) and two switch blanks are provided with the fascia; the blanks have been designed to accommodate the REDARC® Tow-ProTM remote brake controller. On the back of the blanks will be two corresponding indents to aid in drilling the 2 required holes, extra blanks are available.

For models without heater seat switches the two lower locations will require additional switches (not included). No switch blanks are available for the 2 lower switch locations.

Fascia is a sliver / grey finish similar to the OEM colour, installation takes approximately 20 minutes and only requires a medium Phillips, blade screwdriver and trim removal tool (recommended) as the surrounding console simply pulls off.

The new switch fascia relocates in all the exact same mounting points as the original OEM so exact fitment is retained, no additional fixtures or adhesives are required.

The 2 existing 12v outlets and plastic retaining clips will need to be removed from the original fascia and refitted into the new fascia. In addition, for the Z71 model the heater switches are also reused.

FEATURES

Relocates in all the exact same mounting points as the original OEM panel
Installation takes approximately 20 minutes and only requires a medium Phillips, blade screwdriver
Injection moulded ABS/PC panel
Direct replacement with zero modification to the existing surrounding console.

OPTIONAL ACCESSORIES:

RJ45 pass through connector allows for a remote microphone fitted with an RJ45 connector to be connected directly into a switch blank location
The face plate is moulded from ABS/PC so is very strong and locks into place within the existing switch blank locations.
The RJ45 pass through connector is fully replaceable (not glued in) and incorporates a front self-retracting dust cover when the RJ45 microphone connector is fitted, is spring loaded so closes automatically when the microphone RJ45 connector is removed, keeping all the internal connections free of grit.
With LED back lighting illumination in white (standard), with the following six optional colours: green, blue, yellow, cyan, magenta and red
Dual switches with a single input activates independently the top and bottom switches, so if you have a series of dual switches they will need to be grouped into lighting (active with Hi beam) or active with a constant power or ACC on power (P#CBSWTY2D Ranger / Everest and CBSWTYD Colorado).
Network cable is 1200mm long with a wire gauge of 24AWG and is designed to fit neatly within the limited space available (P#CBRJ45).
Dual 2.1 amp 4.2A in total outputs that are fully regulated and surge protected (P# CBUSBTY2 Colorado).
Suitable for charging high powered devices like tablets, mobile phones and gaming consoles or powering navigation units and in car DVR's.

KIT INCLUSIONS

1 x Switch Fascia for 2017 Holden Colorado

1 x Single Switch

2 x Switch blanks

1 x Instructions
