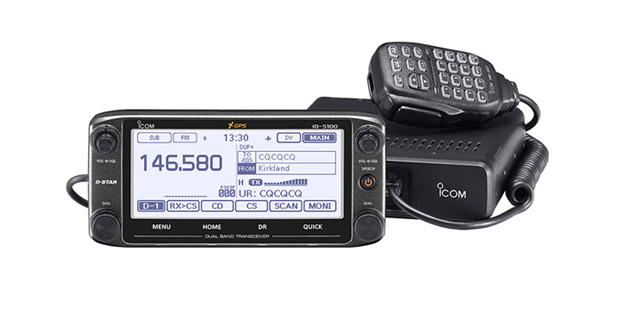

ICOM ID-5100A DELUXE TOUCH SCREEN 5W VHF AND UHF BAND RADIO

Item#: 4408

$1,098.90 AU$999.00

Free Shipping Australia Wide

ICOM ID-5100A DELUXE TOUCH SCREEN 5W VHF AND UHF BAND RADIO
FREE SHIPPING AUSTRALIA WIDE

5 YEARS AUSTRALIAN WARRANTY

Innovation and Mobility Taken to the Next Level

5W output power on both VHF and UHF bands
Intuitive touch screen operation with a large 320 X 128 pixel display
Integrated GPS Receiver
HM-207 multi-function microphone
DV/DV Dualwatch to receive both FM/FM and FM/DV mode simulatenously
Dplus Reflector Linking to allow easy reflector operation
D-STAR DV model operation
DV/FM Repeater List Function
Enhanced D-PRS functions with object, position, items and weather formats
AM airband dualwatch
CS-5100 cloning software supplied
SD card slot for voice and data storage Icom
5 year warrnaty on radio*

Icom ID-5100A Deluxe - Innovative 2m/70cm transceiver with touch screen and internal GPS

Intuitive touch screen operation

The intuitive touch screen interface provides quick and smooth operation for setting and editing various functions and memories. The 5.5 inch display (320 × 128 pixel) shows a large easy-to-see software keypad (Qwerty keyboard), and allows you to input alphanumeric characters quickly.

V/U, V/V, U/U Dual receive

The ID-5100A receives 118?174MHz and 375?550MHz* with dual receiver capability that allows you to receive two bands simultaneously (including within a single band)*. Almost all VHF & UHF communications are available to you!

DV Dualwatch

The ID-5100A has simultaneous receive for FM/FM and FM/DV modes, and the capability of monitoring two DV signals. The main band audio has priority, if two DV signals come in at the same time.

GPS receiver

The ID-5100A/E has integrated GPS which allows you to transmit and receive position data from the built-in GPS receiver. Position, course, speed and altitude are shown on the display. The GPS position information can be used for exchanging position reports, tracing the GPS log and searching for nearby repeater sites. The GPS antenna is located in the remote head, no external GPS antenna required.

DV/FM Repeater list function

The DV/FM repeater list function assists you in accessing near-by repeaters, even where you are visiting an area for the first time. The function searches for near-by repeaters using the repeater memories with the GPS position information.

To use the repeater list function, the position data of the repeater is required in the repeater list. The ID-5100A/E will be shipped with a limited number of repeater memories pre-programmed.

Dplus reflector linking

Dplus Reflector link commands are added to the DR function to allow easy reflector operation. Use Reflector, link/unlink to Reflector, echo test and repeater information commands are selectable.

Built-in CTCSS/DTCS encoder and decoder

Built-in CTCSS and DTCS tones are used for accessing a closed repeater or tone squelch operation. The pocket beep alerts you with a beep sound when the transceiver receives a preset tone. 1750Hz tone is also available.

UT-133 Bluetooth® unit (option)

The UT-133 is the optional Bluetooth® board necessary for operation with the optional VS-3 headset and the optional RS-MS1A, Android application.

VS-3 Bluetooth® headset (option)

The optional Bluetooth® headset, VS-3, can be used for hands-free communication and remotely control the ID-5100A/E with three programmable buttons. Providing you with convenient communication in a vehicle.

RS-MS1A Android application (optional free download from Google Play)

Connect to the ID-5100A/E for remote control of DR functions, link with a map application and send/receive messages and images over the DV mode

*Optional UT-133 Bluetooth® unit must be installed in the ID-5100A.

*Some functions may not work properly, depending on Android? phones and

devices used.

Steps to send a picture over DV mode

Take a picture using an Android Device
Transfer the photo to the ID-5100A via Bluetooth
Transmit the photo over the DV mode
Receive the photo at a ID-5100A
View the photo on an Android Device

Other features

Menu-driven user interface
DTMF via microphone or ID-5100 display
Enhanced D-PRS functions with object, position, item and weather formats
Convenient memory contents management using CSV data format
Speech function announces operating frequency, mode and received callsign (DV mode)
Independent main dial, volume and SQL knobs for A/B bands
AM airband dualwatch
CS-5100, cloning software supplied
5W output power on both VHF and UHF bands
Weather channel with weather alert function*
Auto repeater function*
*USA versions only.
