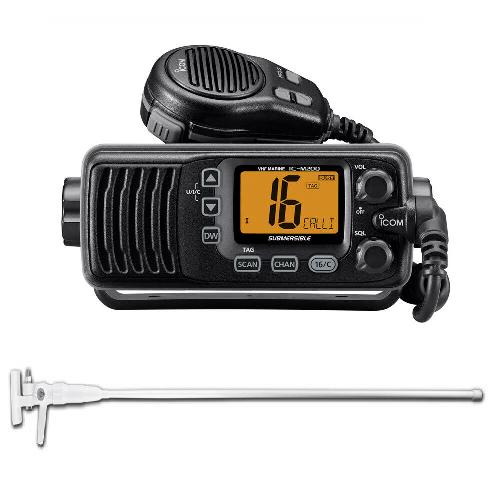

Icom IC-M200 VHF Black Marine Radio Front Mount Speaker
Australian model and Australian Warranty With icom Australia Direct
Free postage Australia wide
Features
Compact and IPX7 submersible body
Powerful front mount speaker
Class leading receiver performance
Large easy-to-see LCD
Dualwatch and Tri-watch function
Favourite channel function
AquaQuake draining feature
Specifications
General
Frequency range
Tx: 156.025–162000MHz
Rx: 156.025–162.025MHz
Usable channel groups: INT, USA, CAN channel
Type of emission: 16K0G3E (FM)
Power supply voltage: 13.8V DC nominal (11.7V–15.9V DC)
Current drain
Tx (at 25W output) 5.5A (Maximum)
Rx (Maximum audio) 1.5A (Maximum)
Operating temperature range: –20°C to +60°C
Antenna impedance: 50Ω
Dimensions: (W×H×D) 153×67×133 mm
Transmitter
Output power
25W (High power)
1W (Low power)
Modulation: Variable reactance frequency modulation
Max. frequency deviation: ±5kHz
Frequency stability: ±5ppm
Spurious emissions
Less than –70dBc (High power)
Less than –56dBc (Low power)
Adjacent channel power: More than 70dB
Audio harmonic distortion: Less than 10% (at 60% dev.)
Residual modulation: More than 40dB
Receiver
Intermediate frequency
1st: 21.7MHz
2nd: 450kHz
Sensitivity: –14dBμ typ.
Squelch sensitivity: Less than –10dBμ
Adjacent channel selectivity: 75dB typical
Spurious response: 75dB typical
Intermodulation 75dB typical
Hum and noise: More than 40dB
Audio output power: 4.5W typical (at 10% distortion with a 4Ω load)
