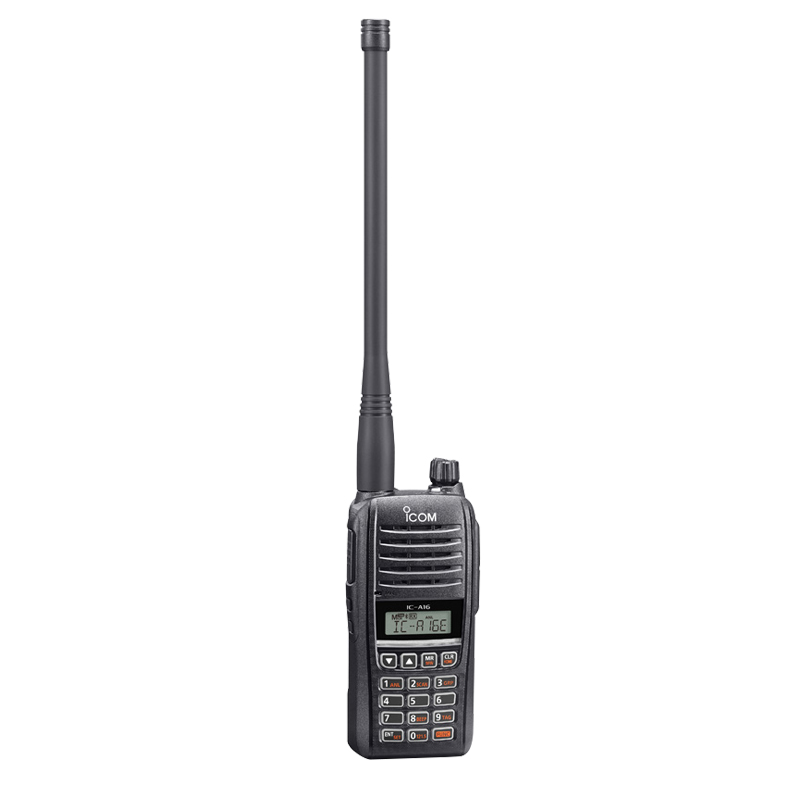

  The ICOM IC-A16E AIRBAND VHF RADIO AIR BAND TRANSCEIVER is currently out of stockCheck out ICOM UHF HANDHELD category for other Great deals.ICOM IC-A16E ICA16E AIRBAND VHF RADIO AIR BAND TRANSCEIVER NEW MODELFREE SHIPPING AUSTRALIA WIDE5 YEARS AUSTRALIAN WARRANTY
IC-A16E Icom’s most affordable (VHF) Air Band Transceiver (For ground and air operations)Supplied accessories
BP-280 battery pack
BC-213 rapid charger*
BC-123SE AC adapter*
FA-B02AR antenna
MB-133 belt clip
Hand strap
8.33/25 kHz Ground to Air Radio with Class Leading 1500 mW Powerful Audio
8.33 kHz and 25 kHz channel spacing
1500 mW loud audio provides clear communications
6 W (PEP) /1.8 W (carrier) RF output power
Large capacity battery pack provides 17 hours* of long battery life
* With BP-280. Typical operation with
Compact, waterproof durable body (IP67/54 and MIL-STD-810-G)eneral
IC-A16E
Frequency range TX/RX : 118.000–136.992 MHz
Number of memory channels 200 channels
Channel spacing 8.33 kHz/25 kHz
Type of emission 6K80A3E, 5K00A3E
Power supply requirement 7.2 V DC
Current drain (approximate) TX High 1.8 A
Rx Stand-by 65 mA typical
Max. audio 650 mA
Antenna impedance 50 Ω (BNC type antenna connector)
Operating temperature range –20°C to +55°C
Dimensions (W×H×D)
(Projections not included) 52.2 × 111.8 × 34.1 mm (with BP-280)
Weight (approximate) 257 g (with BP-280)
Transmitter
IC-A16E
Output power (at 7.2 V DC) 6.0 W (PEP), 1.8 W (carrier)
Audio harmonic distortion Less than 10% (at 85% + 3 dB modulation)
Harmonics spurious emissions Less than –36 dBm
(Except for operating frequency ±1 MHz.)
Frequency stability ±1 ppm
Receiver
IC-A16E
Intermediate frequencies
46.35 MHz (1st), 450 kHz (2nd)
Sensitivity Less than 0 dBμ
(at 12 dB SINAD with CCITT)
Squelch sensitivity (Threshold) Less than 0 dBμ
Spurious response More than 70 dB
Ham and noise More than 40 dB (at 90% modulation)
Audio output power INT SP 1500 mW typical
EXT SP More than 350 mW
(AM 8 Ω 60% modulation at 10% distortion)
External speaker connector 3 conductor 3.5 (d) mm
Measurements made in accordance with EN300 676-2.
Applicable U.S. Military Specifications
Standard
MIL-810 G
Method
Procedure
Low Pressure 500.5 I, II
High Temperature 501.5 I, II
Low Temperature 502.5 I, II
Temperature Shock 503.5 I-C
Solar Radiation 505.5 I
Rain Blowing/Drip 506.5 I, III
Humidity 507.5 II
Salt Fog 509.5 –
Dust Blowing 510.5 I
Immersion 512.5 I
Vibration 514.6 I
Shock 516.6 I, IV
Also meets equivalent MIL-STD-810 -C, -D, -E and -F.
Applicable IP Rating
Ingress Protection Standard
Dust and Water IP67/54
All stated specifications are subject to change without notice or obligation.
( No bluetooth)
|
