GME XRS-330C XRS330C xrs CONNECT SUPER COMPACT BLUETOOTH ENABLED UHF 80CH 5W

5 YEAR GME AUSTRALIAN WARRANTY

FREE POSTAGE AUSTRALIA WIDE

The XRS family is a new Australian Made radio platform designed to be smart, adaptable and rugged.

Enabled by Bluetooth^® wireless technology, XRS^TM is the first of a new generation of connected UHF radios with unique features never before seen.

It is the first ever UHF CB radio with app control and introduces new features such as creating and sharing scan lists and instant access to the entire Australian and New Zealand registered analogue frequency database.

Much like a smart device, the XRS family are software upgradable via the app, keeping customers up to date with the latest features and technology.

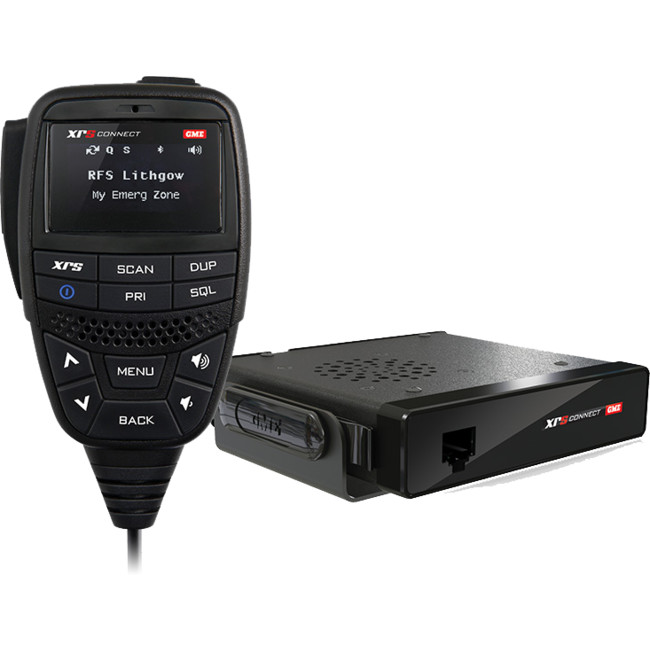

The new XRS Connect professional grade speaker microphone features a powerful 2 watt speaker, customisable buttons and a high contrast OLED screen guaranteeing crystal clear, anti-glare display.

Genuine GME 5 year warranty, plus download and register the new XRS Connect App and receive one year additional warranty.

Visit Google Play or the App Store and search 'XRS Connect'.

The Bluetooth® word mark and logos are registered trademarks owned by the Bluetooth SIG, Inc. and any use of such marks by GME is under license. Other trademarks and trade names are those of their respective owners.

Apple and the Apple logo are trademarks of Apple Inc., registered in the U.S. and other countries. App Store is a service mark of Apple Inc.

Product Details

• Bluetooth wireless technology

• End user software upgradeable via the app

• Download the XRS Connect App on Google Play or the App Store

• App compatible with iOS9.0, Android 5.0 and above

• Windows app compatible with 7.0 and above available January 2017

• Easy to configure and customise radio via the app

• Create and share personalised scan lists - up to 400 frequencies

• Instant access to over 20,000 receive frequencies

• XRS Connect speaker microphone with OLED display

• Customisable buttons

• 25% faster scan speed at 50 channels per second

• Memory channel quick select

• 5 year warranty + 1 additional year for downloading and registering app

Compliant Specification

Meets AS/NZS 4365 for radio communications equipment in the UHF citizen and personal radio service.

Frequency Range TX

476.425-477.4125 MHz

Number of Channels

80

Channel Spacing

12.5 kHz

Operation Mode

Simplex or half Duplex with repeater talk around.

Scanning Speed

25 ms per channel (40 channels per second)

Antenna Impedance

50 Ohms nominal

Nominal Battery Voltage

12 volts DC

Operating Voltage Range

10-16 volts DC

Battery Polarity

Negative Earth

Standard Test Voltage

13.8 volts DC

Overvoltage Protection

30 volts DC max. At 18 volts DC the RF power is reduced, and the words ‘Hi DC’ flash.

Reverse Voltage Protection

Diode Crowbar

Overcurrent Protection

In-line 2 amp fuse

Operating Temperature

-10°C to 60°C

Dimensions

29 (H) x 128 (L) x 117 (D) mm

Weight

450 grams

Antenna

SO239 panel socket

External Speaker

3.5 mm mono jack

Microphone Port

6 Way telephone style with rubber strain relief

In the Box:

• XRS-330C Super Compact UHF CB radio with Bluetooth Smart Connectivity

• XRS Connect speaker microphone

• Microphone clip and radio mounting bracket

• DC power Lead

• Screw pack

• LE040 Mic extension lead

• AD008 Mic extension adaptor kit
