GME TX4610 5 WATT UHF RADIO + AXIS CH5T BLACK UHF FIBERGLASS ANTENNA

FREE SHIPPING AUSTRALIA WIDE

5 YEAR AUSTRALIAN WARRANTY

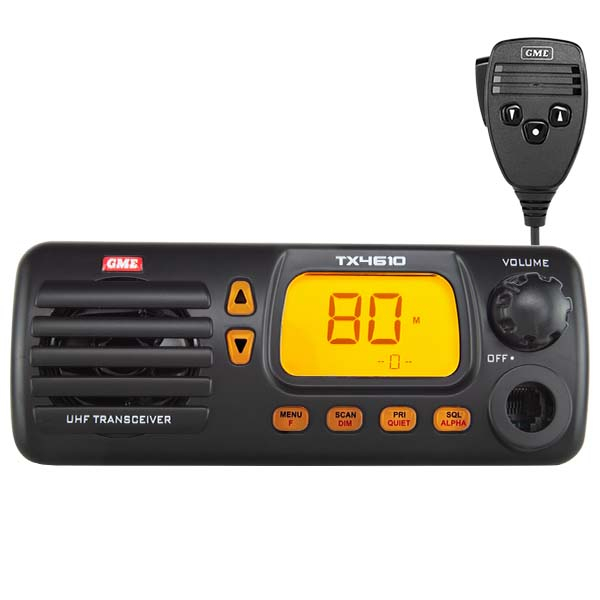

The TX4610 is ideal for the most rugged environments and is especially suited for use on ATVs, quad bikes and tractors. The TX4610 packs a lot of features into a compact chassis including a large, tri-colour backlit display, selcall and programmable channels.

The all-new IP67 microphone includes channel up/ down keys and a priority channel button making these functions a simple one-handed operation within a modern, waterproof and dustproof chassis. The TX4610 can be installed using either the supplied metal mounting bracket, or flush mounted with the optional MK008B flush mount kit to suit the user’s individual installation requirements.

The TX4610 is proudly designed and made in Australia, ensuring the rugged, high-quality design will offer years of reliable operation in ATV and farming vehicles.

Product Details

Compact size
Ingress protection to IP67
User Selectable Priority Channel
User Selectable Open and Group Scan
User Adjustable Squelch
5 Digit Selcall with Quiet Mode
50 In-Built CTCSS Codes
10 Selcall Memories
Tricolour Backlighting
ANI (Automatic Number Identification) and Alpha Labelling for Selcall.
19 Extra User Programmable Receive Channels (403-520 MHz).
Australian Made
5 Year Warranty

In the Box:

TX4610 UHF CB Radio
IP67 Microphone (MC610)
Metal Mounting Bracket
Microphone Clip
12V DC Lead
Screw Pack

Product Specifications

GENERAL

Compliant Specification

Meets AS/NZS 4365 for radio communications equipment in the UHF citizen and personal radio service.

Frequency Range TX

476.425-477.4125 MHz

Number of Channels

80 UHF CB + 19 Receive only

Channel Spacing

12.5 kHz only

Operation Mode

Simplex Ch1 - 80 Semi Duplex Ch 1 - 8, 41 - 48

Scanning Speed

20 channels per second

Antenna Impedance

50 Ohms nominal

Nominal Battery Voltage

13.8 volts DC

Operating Voltage Range

10 - 15 volts DC

Overvoltage Protection

30 Volts DC max. At 18 Volts DC the RF power is reduced, and the words ‘Hi DC’ flash.

Overcurrent Protection

In-line 3A Fuse

Frequency stability

± 2.5 PPM

Modulation

TRANSMITTER

RF Output

5.0 watts max

Spurious Emission

< - 26 dBm

Maximum Deviation

< ± 2.5 kHz at + 20 dB

Transmit Frequency Response

+ 6 dB per octave 300 Hz to 3 kHz + 1 - 3 dB

Current Consumption

< 260 mA muted 600 mA @ max. A.F Output

RECEIVER

Intermediate Frequencies

1st - 21.4 MHz 2nd - 450 kHz

Sensitivity

- 123 dBm for 12 dB SINAD unweighted

Selectivity

- 6 dB at ± 3.5 kHz, - 60 dB at ± 12.5 kHz

Intermodulation Immunity

73 dB

Blocking Immunity

100 dB

Spurious Response Immunity

70 dB

Audio signal to noise: 12.5Khz

> 45 dB

Current consumption

1.7 amps with 50 Ohm termination

Conducted Spurious Emission

< - 57 dBm

MECHANICAL SPECIFICATIONS

Dimensions

65 (H) x 165 (L) x 56 (D) mm

Weight

472 grams

Storage temperature

-10°C to +60°C

AXIS CH5T BLACK UHF 5DB FIBREGLASS CB ANTENNA 720MM HEIGHT FOR GME UNIDEN ORICOM

FREE TRACKABLE POST AUSTRALIA WIDE

EXCELLENT ANTENNA FOR THE CITY AND COUNTRY

BLACK WHIP WITH HEAVY DUTY SPRING 720MM TOTAL LENGTH

SUITS ALL BRANDS OF 40 & 80 Channel UHF CB RADIOS

BLACK

CONTENTS

Packaged with 5.3M coax cable+ Connector (PL259). There is a fme connector on the end of the cable so you can just thread the cable through and then screw on the uhf pl259 connector to the end of it which is included for an easier fit. No soldering or cutting required. Excellent antenna for easy installation anywhere on the vehicle.

High impact radome (whip 615mm)

5dB Gain
Includes heavy duty spring
720mm height including the spring
