GATOR GT70SDTK GT SERIES MONITOR AND DUAL CAMERA TRAILER KIT

GATOR GT70SDTK GT SERIES MONITOR AND DUAL CAMERA TRAILER KIT

FREE SHIPPING AUSTRALIA WIDE

1 YEAR AUSTRALIAN WARRANTY

FEATURES

SPECIFICATIONS

• Monitor:

• Display Size: 7" (Diagonal)

• Mounting Options: Adjustable Metal Bracket and Windscreen Suction Mount (GTSM1 Sold Separately)
• AHD: No
• AHD Resolution: N/A
• Display Resolution: 800(H) x 480(V)
• Colour System: RGB
• Display Brightness: 350CD
• Picture Aspect Ratio: 16:9
• Input Voltage: 12V/24V
• Camera Output Voltage: 12V
• Number of Video Inputs: 3
• Number of Video Triggers: 2
• Split Screen Display Options: None (Displays Single Camera)
• Video Input Connection Type: Prolink II
• PAL or NTSC: Both (Auto Switching)
• Picture Adjustment:
• • Brightness: Yes
• • Contrast: Yes
• • Saturation: Yes
• Reverse (Mirror) Image: Yes (Selectable)
• Dimensions (Monitor Only):
  129mm(H) x 195mm(W) x 30mm(L)
• Dimensions (Monitor & Bracket):
  156mm(H) x 215mm(W) x 73mm(L) - Measurement with Bracket In Vertical Position, with Sunshade Fitted


  Other Features:

• Camera 1 (Smaller Camera):

• Mount Type: Surface Mount with Flexible Bracket

• Reverse or Rear View: Rear View
• Lens Angle: 120 Degrees
• CMOS or CCD: CMOS
• AHD: No
• AHD Resolution: N/A
• Parking Gridlines: No
• PAL or NTSC: PAL
• IP Rating: IP67
• Voltage: 12V
• Minimum Illumination: 0.2 LUX
• Number Of LED'S: 0
• LED Type: N/A
• Plug Type Camera End: Micro DIN
• Plug Type Monitor End: N/A
• Length of Video Cable: 500mm (without Prolink II Adapter)
• Reverse Trigger on Video Cable: N/A
• Dimensions (Camera Only):
  43mm(H) x 70mm(W) x 58mm(L)
• Dimensions (Camera & Bracket):
  80mm(H) x 78mm(W) x 58mm(L)



  Other Features:

• Camera 2:

• Mount Type: Surface Mount U-Shaped Bracket

• Reverse or Rear View: Rear View
• Lens Angle: 120 Degrees
• CMOS or CCD: CMOS
• AHD: No
• AHD Resolution: N/A
• Parking Gridlines: No
• PAL or NTSC: PAL
• IP Rating: IP68
• Voltage: 12V
• Minimum Illumination: 0 LUX
• Number Of LED'S: 10
• LED Type: Infrared
• Plug Type Camera End: Prolink II
• Plug Type Monitor End: N/A
• Length of Video Cable: 400mm
• Reverse Trigger on Video Cable: N/A
• Dimensions (Camera Only):
  42mm(H) x 52mm(W) x 55mm(L)
• Dimensions (Camera & Housing):
  60mm(H) x 63mm(W) x 55mm(L)


  Other Features:

• Kit Notes: Camera inputs and triggers are located at the far-end of the 6M main harness. Power input is located at the monitor end of the 6m main harness.

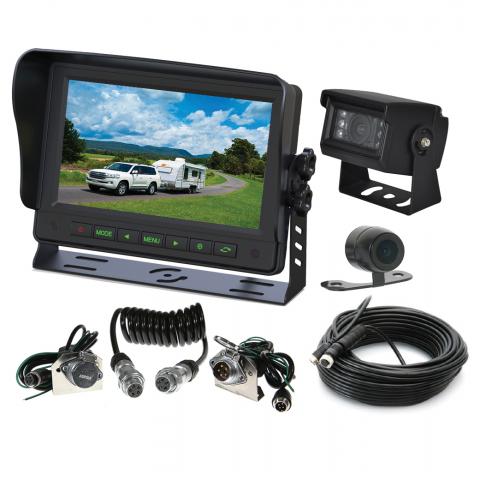

• Kit Inclusions: 7" Monitor, Adjustable Metal Bracket for Monitor, 4x Thumbscrews, Removable Sunshade, IR Remote Control with CR2025 Battery, GT14SD - GT Series Smaller Footprint Heavy Duty Camera, G354C GT Series Compact Butterfly Mount Camera, 1.5M Micro DIN to Prolink II Adapter, 6M(L) Input Harness, 2x Trailer Cable Connectors with Mounting Brackets, Curly Cable, 10M Prolink II extension Cable, User Manual
