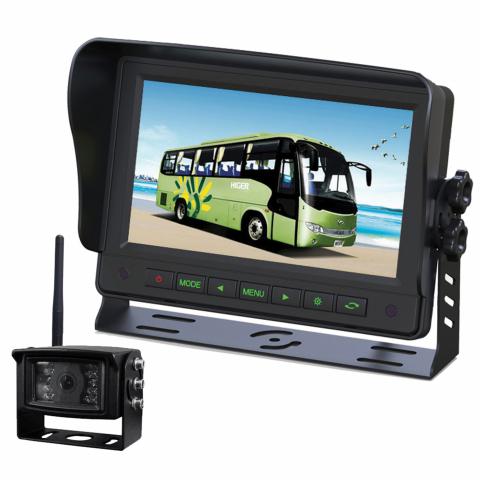

GATOR GT700W2 CHANNEL W/LESS SYSTEM
FREE TRACKABLE POSTAGE AUSTRALIA WIDE
Description:
Whether it be a Heavy Truck, Mining Loader, Industrial or Construction vehicle, these can be some of the most difficult vehicles to operate safely. The Gator GT range of enhanced vision systems gives the driver vastly superior, all round vehicle awareness. Making these vehicles safer not only for the driver but also the people around them. With a much greater awareness of what surrounds the vehicle, the driver is more productive and is less likely to cause damage to the vehicle and/or objects around them. The GT series brings to market the very latest in heavy duty display panels, digital video encoding technology and installation versatility.
Important AHD info:
AHD cameras will NOT display on non-AHD monitors.
Non-AHD cameras will NOT work with AHD monitors.
Features:
-
Monitor:
-
7" Display
-
2-Channel Wireless Receiving
-
1x PROLINK2 Camera Input
-
12V and 24V Compatible
-
High/Low Voltage Cutoff
-
Built-in Short Circuit Protection
-
Optional Windscreen Suction Mount Available
-
3-Year Warranty
-
Camera:
-
Wireless Video Transmission
-
Heavy Duty Design
-
18 IR LED's for Night Vision
-
Adjustable Antenna
-
3-Year Warranty
Specs:
-
Monitor:
-
Display Size: 7" (Diagonal)
-
Mounting Options: Adjustable Metal Bracket and Windscreen Suction Mount (GTSM1 Sold Separately)
-
AHD: No
-
AHD Resolution: N/A
-
Display Resolution: 800(H) x 480(V)
-
Colour System: RGB
-
Display Brightness: 450CD
-
Picture Aspect Ratio: 16:9
-
Input Voltage: 12V/24V
-
Camera Output Voltage: 12V
-
Number of Video Inputs: 3 (2 Wireless + 1 Prolink II)
-
Number of Video Triggers: 1 (Wired Camera Only)
-
Split Screen Display Options: Single
-
Video Input Connection Type: Wireless and Prolink II
-
PAL or NTSC: Both (Auto Switching)
-
Picture Adjustment:
-
-
-
-
Reverse (Mirror) Image: Yes (Selectable)
-
Dimensions (Monitor Only):
129mm(H) x 195mm(W) x 30mm(L)
-
Dimensions (Monitor & Bracket):
156mm(H) x 215mm(W) x 73mm(L) - Measurement with Bracket In Vertical Position, with Sunshade Fitted not Including Antenna
-
Other Features:
-
Camera:
-
Mount Type: Surface Mount U-Shaped Bracket
-
Reverse or Rear View: Rear View
-
Lens Angle: 120 Degrees
-
CMOS or CCD: CMOS
-
AHD: No
-
AHD Resolution: N/A
-
Parking Gridlines: No
-
PAL or NTSC: Switchable PAL
-
IP Rating: IP69K
-
Voltage: 12V/24V
Wireless Frequency: 2.4GHz
-
Minimum Illumination: 0 LUX
-
Number Of LED'S: 18
-
LED Type: Infrared
-
Plug Type Camera End: Prolink II
-
Plug Type Monitor End: N/A
-
Length of Video Cable: 400mm
-
Reverse Trigger on Video Cable: N/A
-
Dimensions (Camera Only):
43mm(H) x 70mm(W) x 58mm(L)
-
Dimensions (Camera & Bracket):
80mm(H) x 78mm(W) x 58mm(L)
Antenna Height: 111mm max - 87mm when at 90-degree angle
-
Other Features:
-
Kit Notes: Camera input, trigger and monitor main input power are located at the far-end of the 1.6M main harness.
-
Kit Inclusions: 7" Monitor, Adjustable Metal Bracket for Monitor, 4x Thumbscrews, Removable Sunshade, IR Remote Control with CR2025 Battery, GT15WC - GT Series Heavy Duty Wireless Camera, Power Input Harness for Camera, 1.6M(L) Input Harness, 2x Antennas (one for Camera, one for Monitor), User Manual
Important AHD info:
AHD cameras will NOT display on non-AHD monitors.
Non-AHD cameras will NOT work with AHD monitors.
