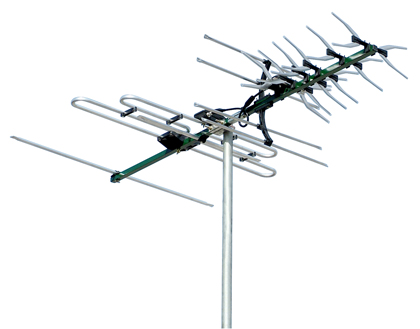

DIGIMATCH DG27 VHF UHF OUTDOOR ANTENNA DIGITAL TV PLASMA LCD

DIGIMATCH DG27 UHF VHF OUTDOOR ANTENNA X TYPE FOR DIGITAL TV

PICK UP IS AVAILABLE IN SYDNEY FROM VILLAWOOD. EMAIL US FOR AN ADDRESS.

Short Description: Antenna VHF/UHF (6-12)(21-69) 27 el. Dmatch

Channels/Perimeters: (6-12)(21-69)

Brand: Digimatch

Replaces: D14HVB/BP,D14HVC, D19HVC, CV1/13A/B/C

Application

Best suited to metropolitan & regional areas.

Features

• Capable of receiving Digital & Analogue UHF and VHF TV Terrestrial Signals

• Improved Gain, VSWR & F/B Ratio for superior Carrier to Noise ratio
  Gain: VHF  6.5dB,  UHF 10dB
  F/B Ratio: VHF  12dB,  UHF  15dB

• X Type elements for wider bandwidth & higher gain

• Digital anti-reflection Matching System (DMS) achieved by diplexing the UHF and VHF antennas together, giving 20dB isolation for sharper analogue pictures and better Bit Error Ratio (BER) for digital transmission

• ‘F’ Type PCB Balun for quick installation and improved VSWR

• Detachable UHF section allowing it to be used in Horizontal & Vertical areas, as well as Horiz/Vertical combined areas, such as Canberra, Dubbo, Wide Bay & Shepparton. 01MM-DG27 requires the SMI-15 for mounting

• Ready for today and future UHF allocations and plus one networks

• New Compact visual retail packaging

• Australian designed and manufactured with Heavy Duty construction, stainless steel screws and Black ABS UV resistant plastics
