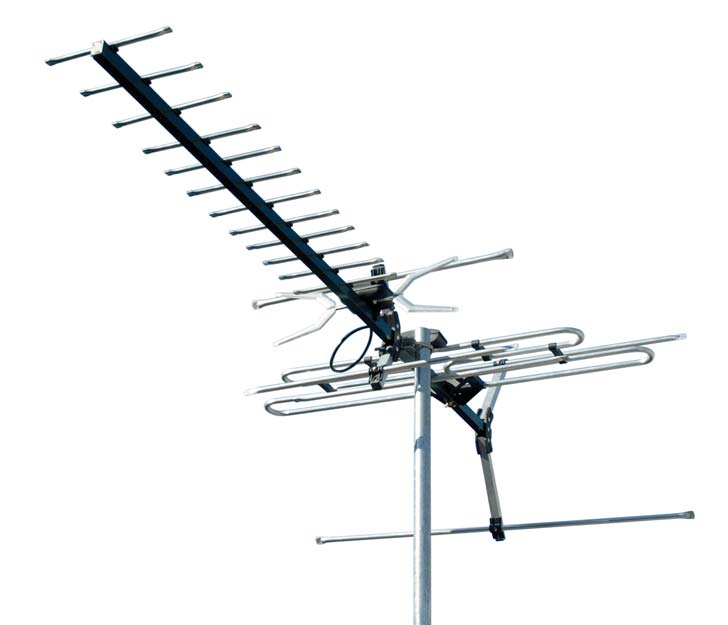

DIGIMATCH DC21A VHF UHF OUTDOOR ANTENNA 21 ELEMENT DIGITAL TV
Application
Metropolitan areas up to 100kms from transmitter. Ideal metro antenna for digital reception and for future UHF restacking.
Features
-
Suitable for metropolitan and some rural areas
-
Heavy Duty Construction
-
Full wave X Type dipole
-
‘F’ Type diplexing system improves multiplex flatness
-
Quick to assemble with snap lock elements
-
Dual Y Type reflector for multipath rejection
-
G Unit® VHF dipole for extra gain
-
20dB Isolation between UHF and VHF sections
-
Digital anti-reflection Matching System (DMS) achieved by diplexing the UHF and VHF antennas together, giving 20dB isolation for sharper analogue pictures and better Bit Error Ratio (BER) for digital transmission
|
Elements |
21 |
|
Band |
B3, B4 |
|
Channels |
B3 VHF (6-12)
B4 UHF (28-40) |
|
Max. Gain |
B3 VHF 8dB
B4 UHF 12dB |
|
AV VSWR |
<2:1 |
|
F/B Ratio |
B3 VHF 16dB, B4 UHF 21dB |
|
Balun Type |
'F' Type Balun VHF
'F' Type Diplexer
Circuit Board |
|
Boom Length |
1538mm |
|
Packing Type/Unit |
Inner: 1
Outer: 5 |
|
Inner Carton Size |
965 x 260 x 135mm |
|
Weight |
3kg |
