baintech 12V Mini Power box Distribution Multiple outlets 12VMPB

Item#: 3628

$273.77    AU$248.88


Free Shipping Australia Wide


Description
Installation process:

The Mini Power Box may be used free standing for portable use. If however you want it permanently mounted follow the steps below :

a) Ensure the installation area is a flat surface and

accessibility to the unit is not obstructed.

b) Ensuring the unit is level use the screws provided to secure. We recommend predrilling the mounted

surface first and fastening the screws by hand screwdriver only. Do not over tighten the mounting

screws.

c) Connect the 12 Volt supply via the input Anderson style connector. This is either a permanent supply from a battery, or it could also be from and Anderson extension cable from a portable battery box when using the unit for portable use. The unit is now ready for use.



Specifications:

VOLTAGE: 12 Volt DC
CURRENT MAX:
– CIG SOCKETS 10A FUSED (SPARE INSIDE)
– ANDERSON STYLE INPUT/OUTPUTS 50A
TOTAL AUTO RESET BREAKER
USB-C PD: 3 X 45W
OC 3.0: 3 X 45W
BATTERY STATE OF CHARGE GUIDE
12.7 VOLT – 100%
12.5 VOLT – 80%
12.2 VOLT 50%
10.5 VOLT – FLAT
INPUT CONNECTION
50AMP ANDERSON CONNECTOR
1M 8B&S CABLE

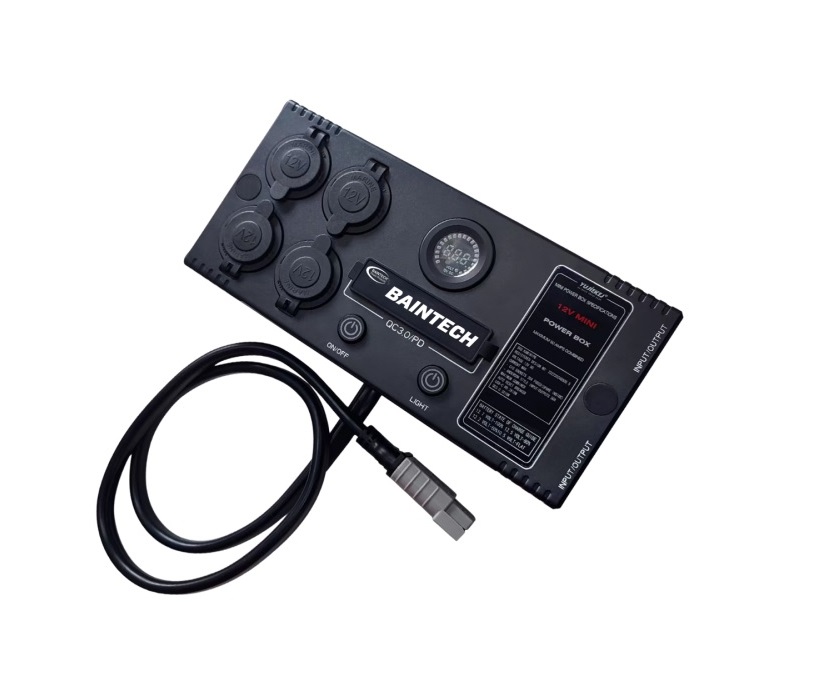

The 12V Mini Power Box is a compact low voltage distribution device with multiple outlets suited to 12 Volt and other low voltage appliances. The Mini Power Box is perfect for use when connecting many devices to one 12 Volt power source as the multiple sockets allow for easy connection. Up to 5 × 12 Volt main devices can be connected and up to 6 × USB devices with a maximum current of 40 Amps. The 12V Mini Power Box has an inbuilt voltmeter for battery voltage monitoring and also an integrated LED interior light with dimming function. The unit can be used as a portable freestanding device or it can be mounted for fixed installation.
Add to Cart:

  • Model: 12V-MPB
  • Manufactured by: LIGHTNINGCELL
