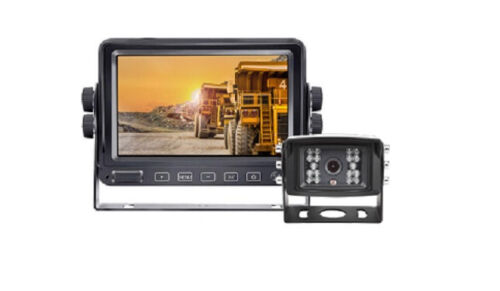

Axis HD5120K ( replacement to the js5020)
5” High Resolution Camera Kit
FREE SHIPPING AUSTRALIA WIDE
A High Resolution 12/24V monitor kit that offers a clear image and enhanced view when reversing. Its Heavy Duty construction makes it suitable for trucks, machinery and vehicles.
The HD5120K also has the added flexibility of connecting up to 2 cameras. (1 camera included)
SPECIFICATIONS
MONITOR
- TFT Panel: New Grade A LCD
- LCD Size: 5-Inch (Diagonal)
- Display Format: 16:9
- Resolution: 1024 x 600
- Brightness: < 500 CD/M2
- Viewing Angles: 70° Left/Right/Up/Down
- Video System: Auto PAL/NTSC Select
- Video Connect: 2 x 4-Pin (Male)
- Compatibility: Standard & High Resolution Camera’s
- Buttons: Touch Sensitive
- Connection Type: Universal Standard 4-Pin Configuration (M)
- Camera Triggers: 2
- Monitor View: Normal/Mirror/Flip/Mirror-Flip Image Select
- Guidelines: Selectable On/Off (Camera 2 Input Only)
- Audio: Camera 2 Input Only
- Main Menu: Brightness/Contrast/Colour/Photosensitive (Dimmer), Language, Default Setting, Volume, RLUD, (Screen Orientation), VCOM (Exposure), Ruler Setting (Guidelines), AccTime, Version
- Operating Temp: -20°C to +70°C
- Power Input: 10-32V DC (Negative Ground)
- Dimensions: 132.2W x 94.3H x 22.45D mm (Excluding bracket & Visor)
CAMERA
12V Heavy Duty Camera
- Sensor: 1/3” IMX225LQR-C
- Diagonal Viewing Angle: 140°
- Horizontal Viewing Angle: 120°
- Signal System: PAL
- Effective Pixels: 1280H x 720V
- Resolution: 720p
- Orientation: Mirror Image
- Night Vision: 18 Infrared LED’s
- Illumination: 0.001 Lux with IR on
- Ingress Protection: IP69K
- Integrated Microphone: Yes
- Operating Temp: -20 to 70° C
- Power Consumption: 3W, 250mA
- Dimensions: 98.3W x 67.7H x 68D mm (including Bracket)
- Connection Type: Universal Standard 4-Pin Female
- Power Supply: 12V DC
Included
-Monitor
-CHD10 H/DUTY Camera
-Sun Visor
-U-Bracket
